Automatic electronic linear weighers with 2 or 3 weighing heads.

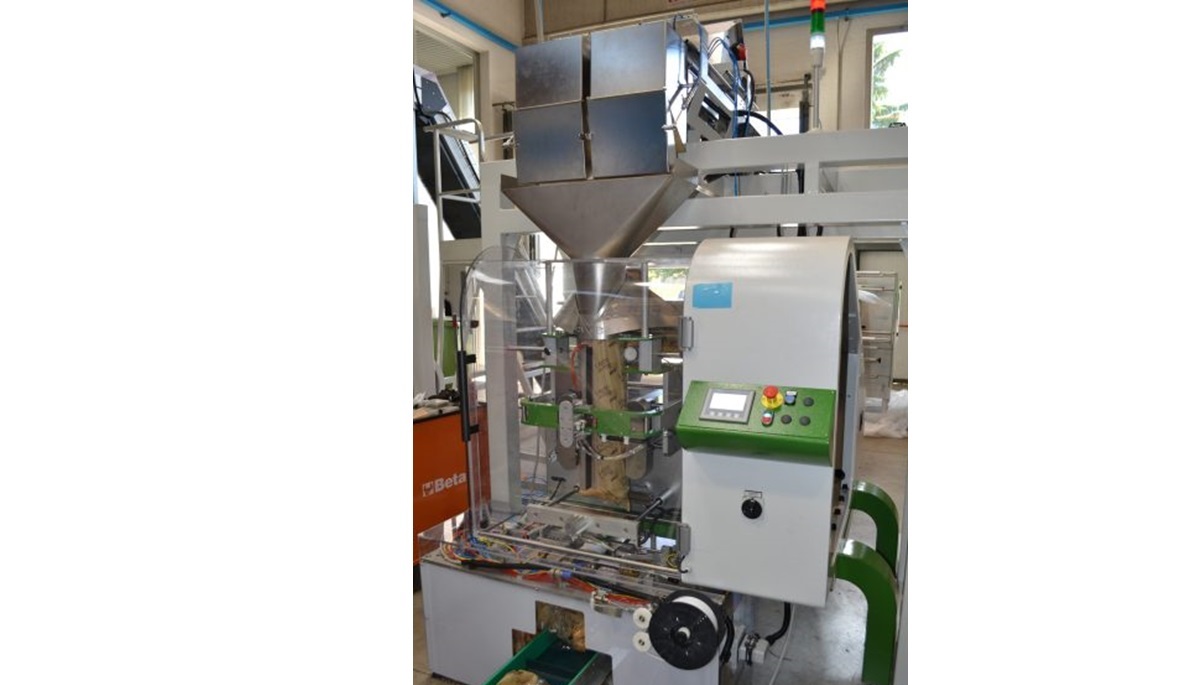

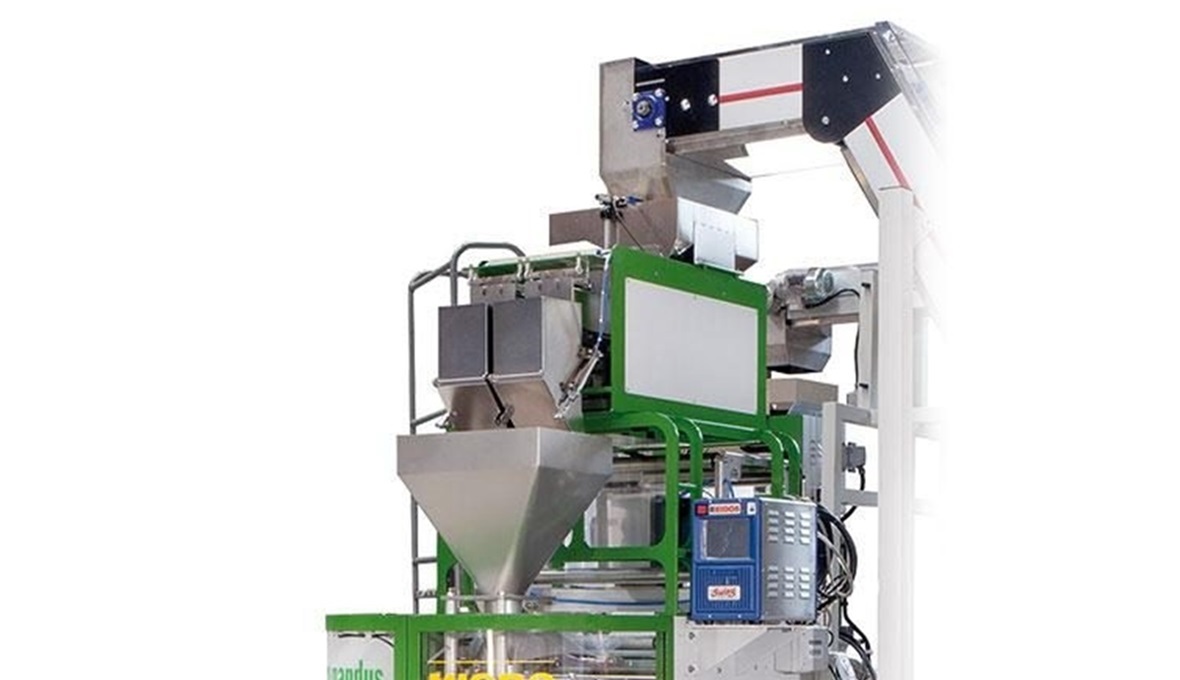

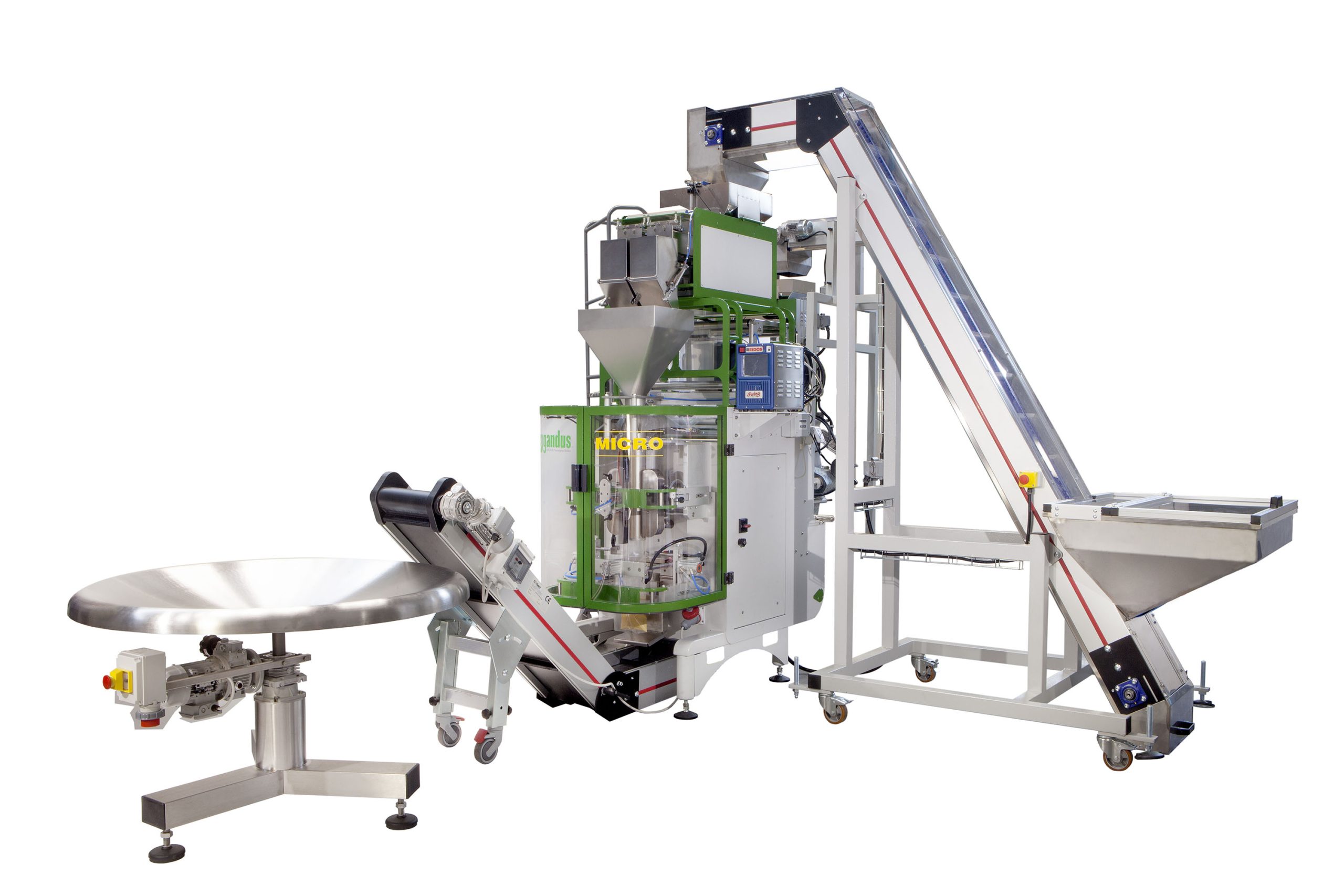

Designed to work independently or in combination with FFS vertical packaging machines.
Developed for the automatic packaging of fine or coarse grain products and the filling of preformed bags and containers in general.
Technical Features
Applications
Fine and coarse volume products, roasting, rice, spices, milling, savoury snacks, baked goods, biscuits, sweets, fruit and vegetables, granular products, technical products, pet food.
packs
Designed for filling preformed bags and containers in general
Construction features

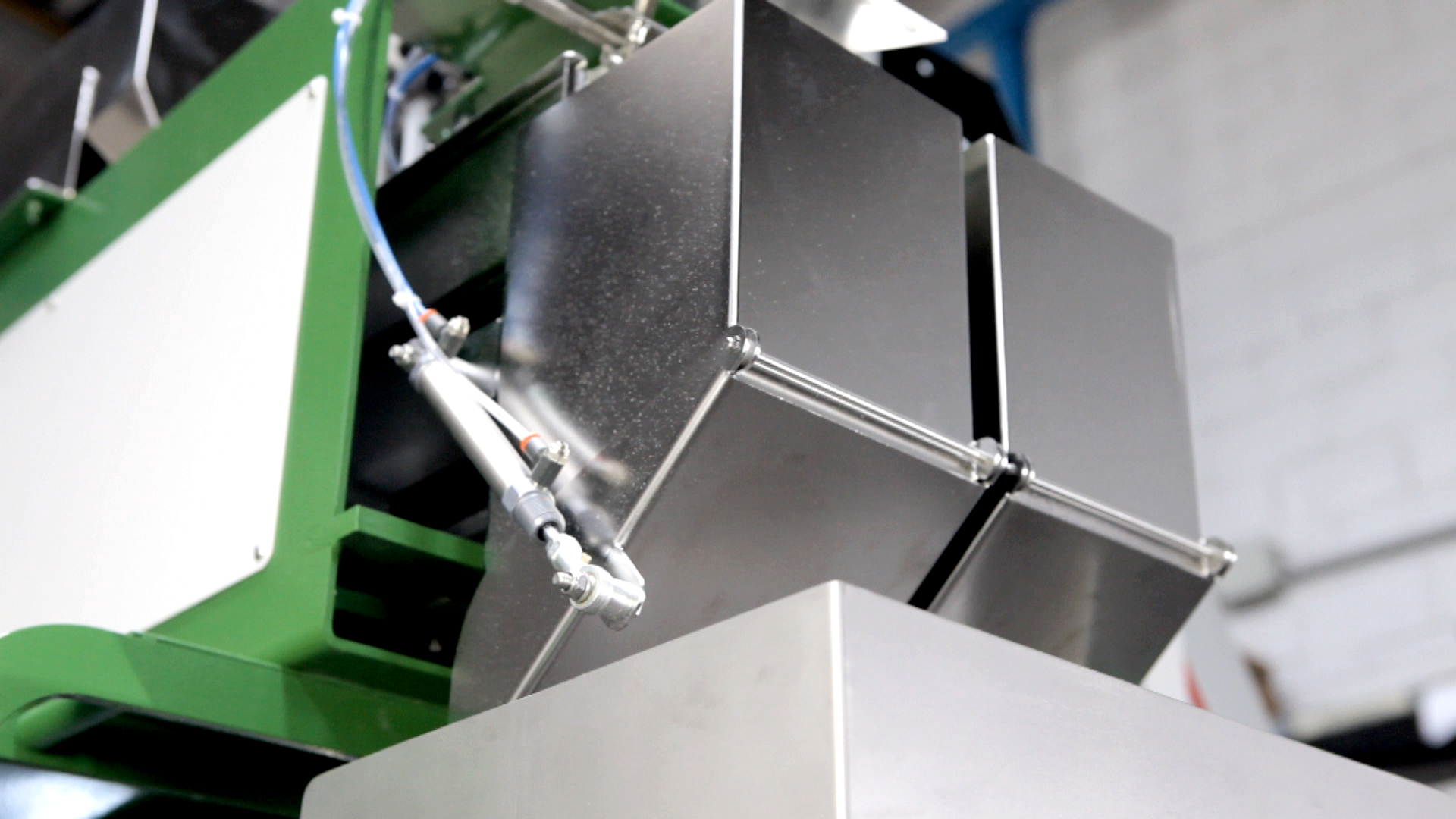

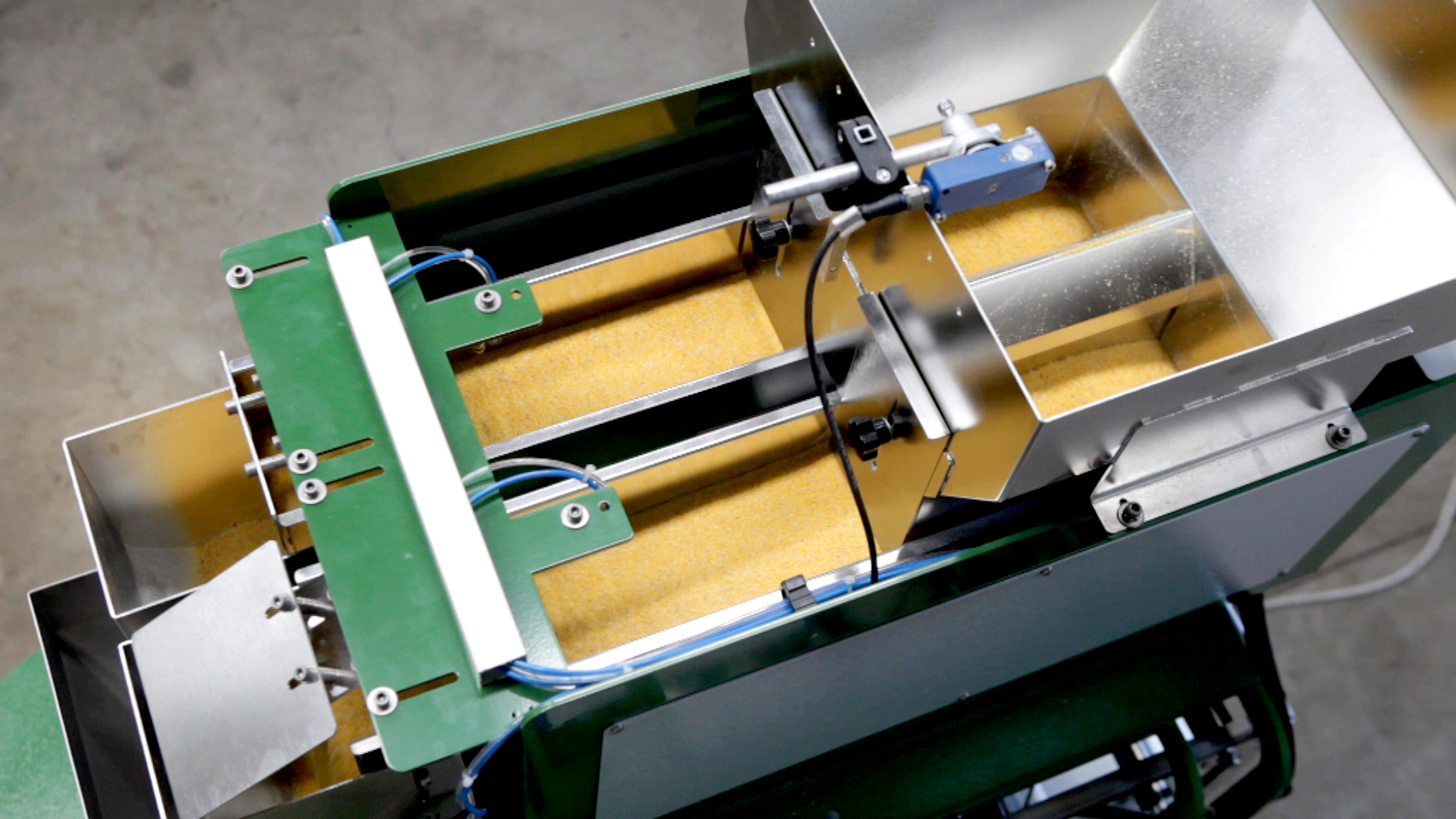

2 or 3 weighing heads, each fed by a single vibrating channel, which performs roughing and finishing in sequence.
All parts in contact with the product are in standard AISI 304 stainless steel.
operation
Weight management with GA 1404 electronics, with synchronization of both weight control and vibration frequency.
2 or 3 weighing heads, each powered by a single vibrating channel, which performs roughing and finishing in sequence.
Each weighing head is powered by 1 vibrating channel, for roughing and finishing.
The software autonomously manages the vibration frequency in relation to the required weight, to obtain maximum dosing precision.
Versions
Also available in a special counting version instead of weight, particularly suitable for the bakery and baked goods sectors (e.g. counting rolls, counting croissants).
Available on request in corrugated or Teflon-coated sheet metal.
