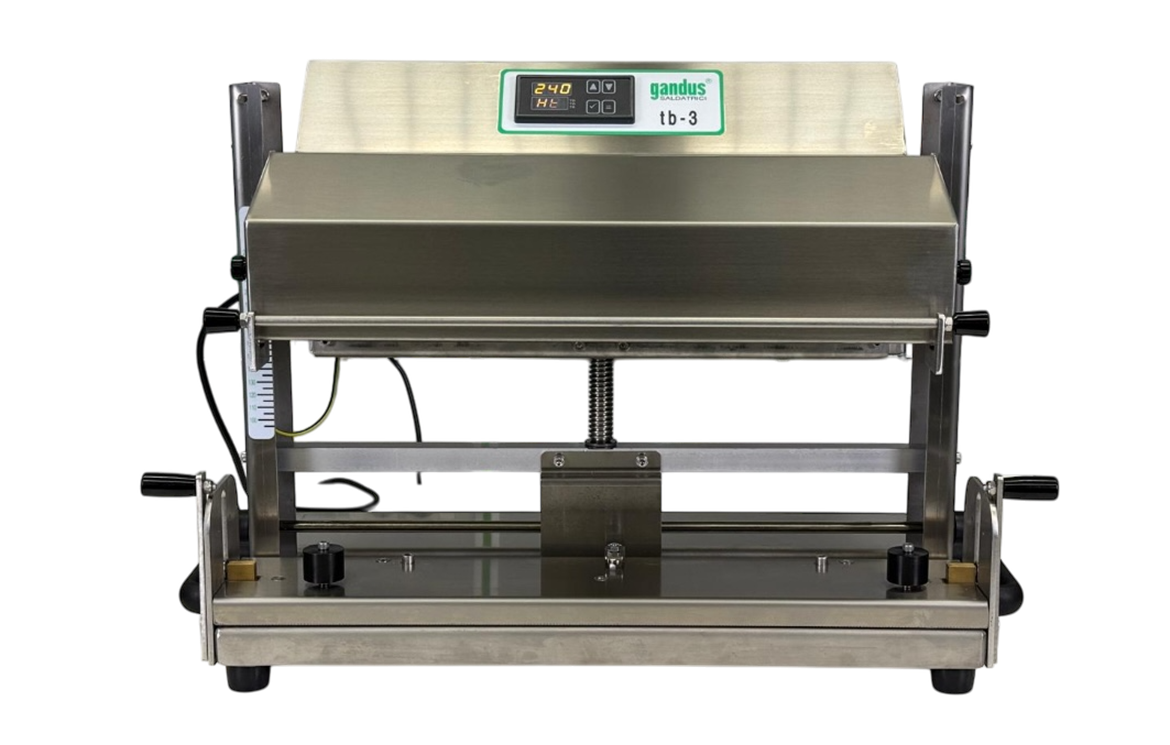

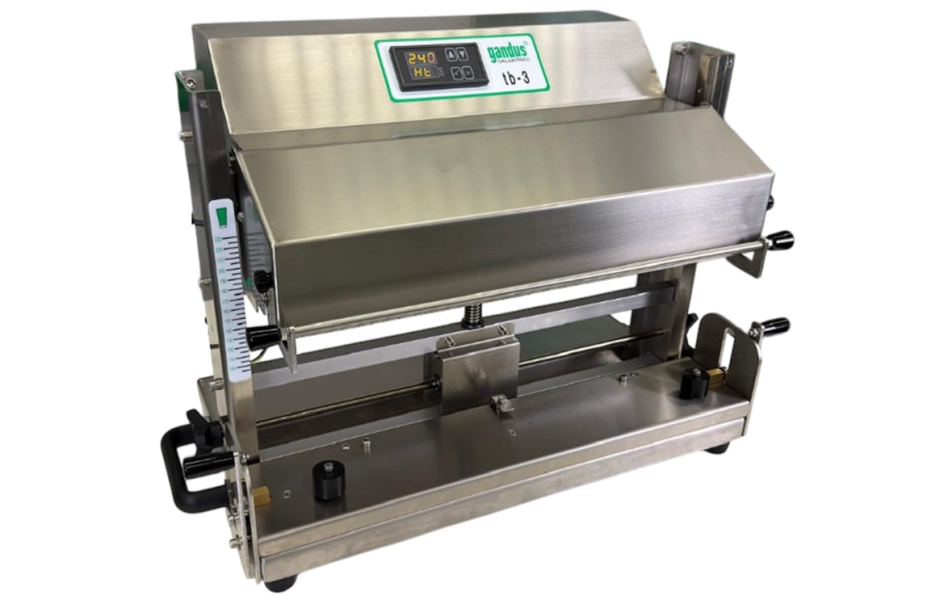

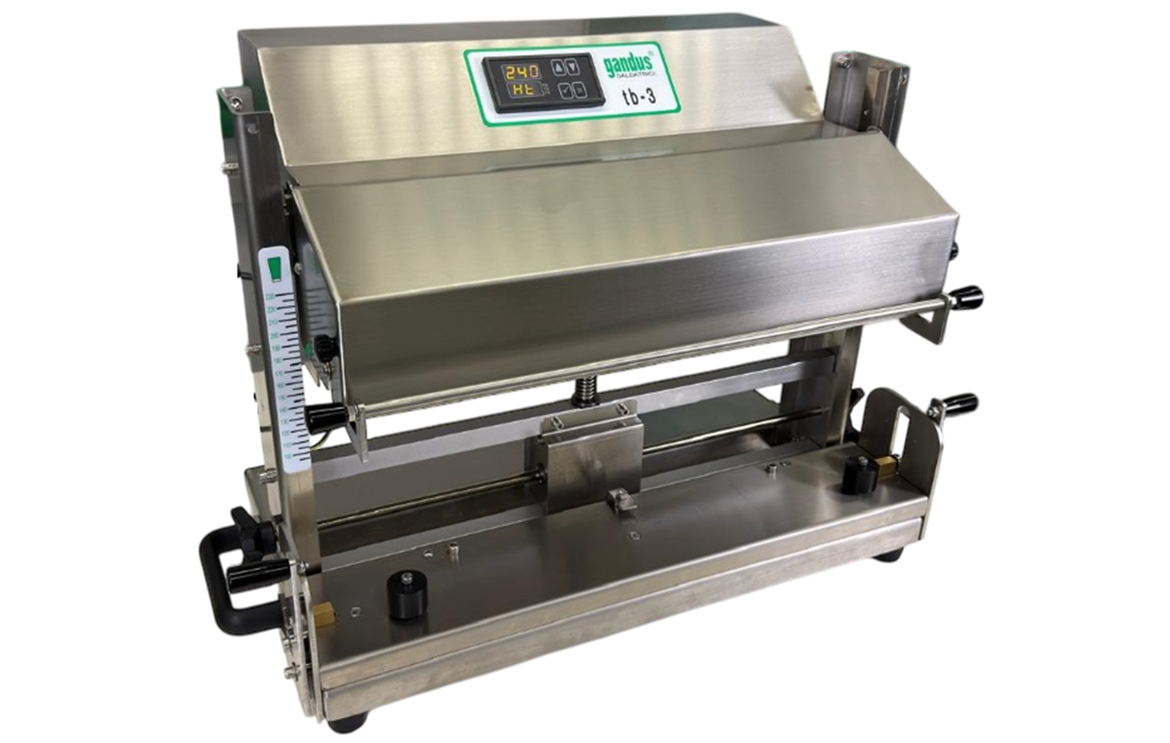

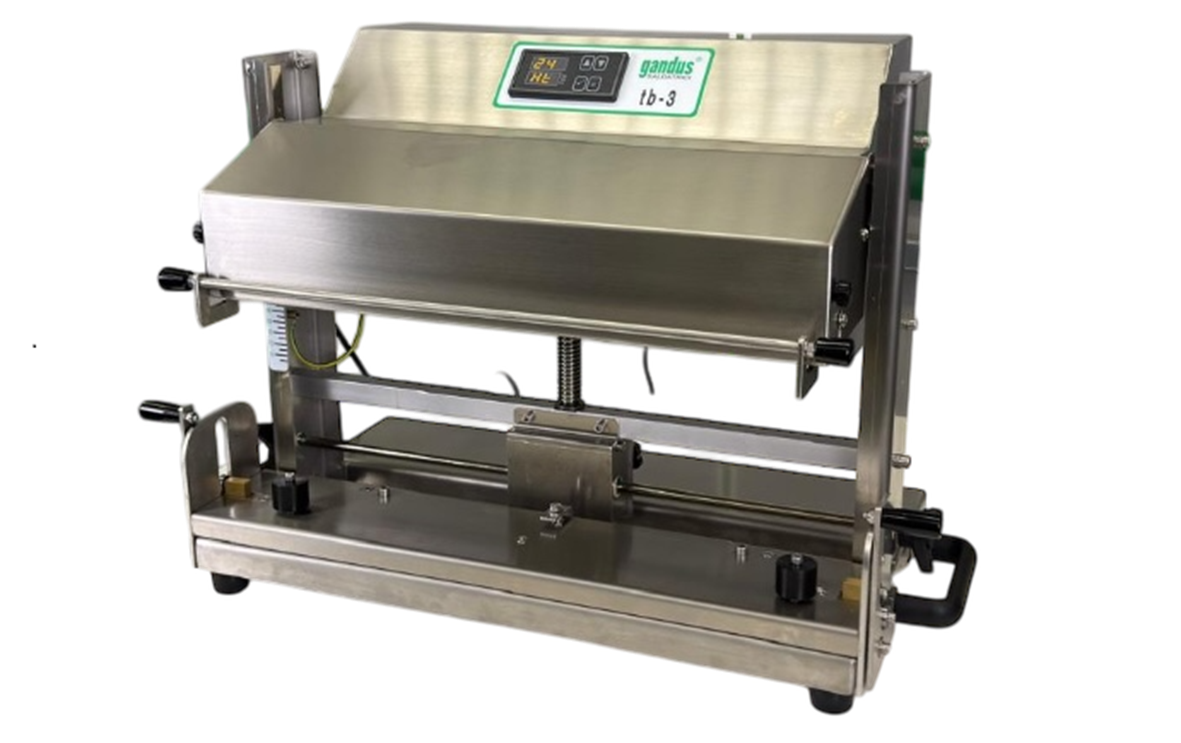

Table top impulse heat sealer in stainless steel for closing and coding PE, PP, PVC tubes of variable length and diameter.
Advantages and Benefits
The perfect solution for small producers and for the realization of quality/production tests.
Cutting-edge features that combine durability, resistance, hygiene, sustainability of stainless steel, to guarantee a superior production process and result quality, as well as minimal maintenance.

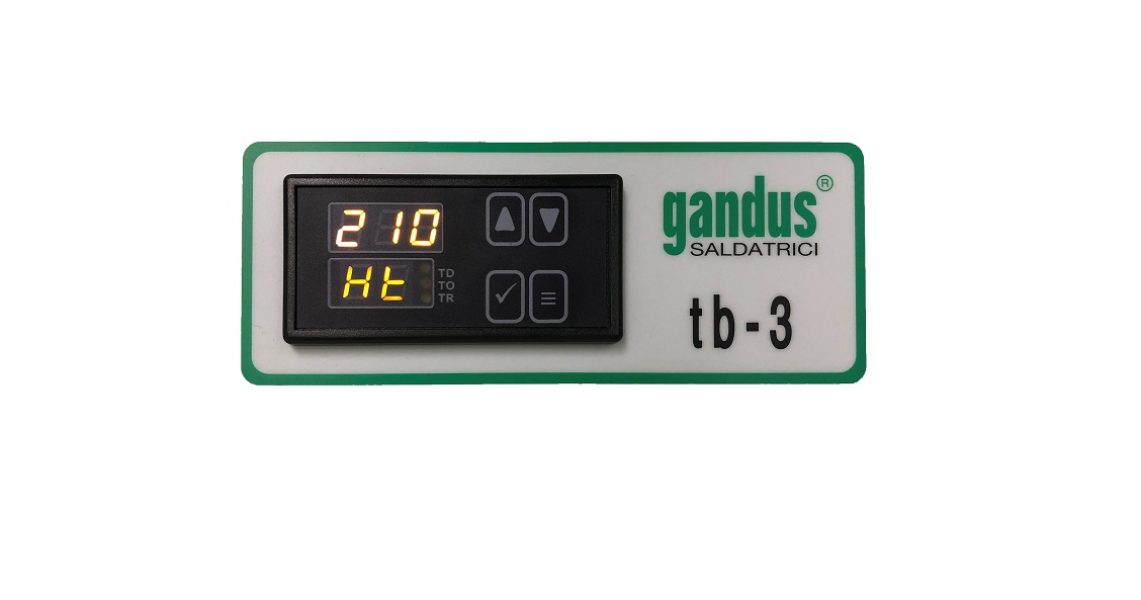

Maximum performances thanks to the new latest generation controller, which sets a new standard in terms of precision and efficiency. Advanced controls and intuitive features simplify the production workflow and guarantee unprecedented precision and consistency. It offers a preheating temperature setting to allow the best temperature stabilization before the sealing phase, as well as a temperature differential to allow cycle repeatability.
The on-demand punch coding system allows during the sealing phase to imprint an alphanumeric code of up to 10 characters per tube inside the sealing band, simultaneously on 4 or 6 tubes.

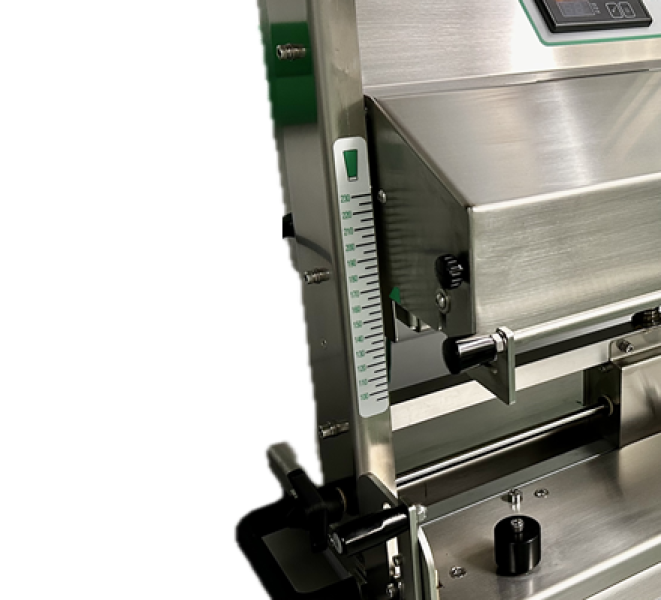

Graduated positioning scale to optimize the adjustment of the height of the sealing head.
Technical Characteristics
Applications
Confectionery, cosmetics, chemicals
Heat Sealable Materials and Packaging
Tubes in PE, PP, PVC of variable length, from mm 105 to mm 220, with diameter up to mm 60.
Sealing
System of Impulse
Flat sealing
Sealing height mm 4
Temperature 50° ÷ 250° C ± 1°
Construction features
Stainless Steel Construction
Pre-heated front sealing bar
Rear sealing bar with flat band
Thermo-controlled punch holder code bar
Innovative controller, which sets a new standard in terms of precision and efficiency, with advanced controls and intuitive features to simplify the production workflow and ensure unprecedented precision and consistency.
Graduated positioning scale to optimize the height adjustment of the sealing head.
Punch coding system on request.
Complete with 2 loaders of your choice, standard sizes Ø: mm 20-25-30-35-40-50 and thermo-controlled punch holder bar with 4 or 6 seats
Operation

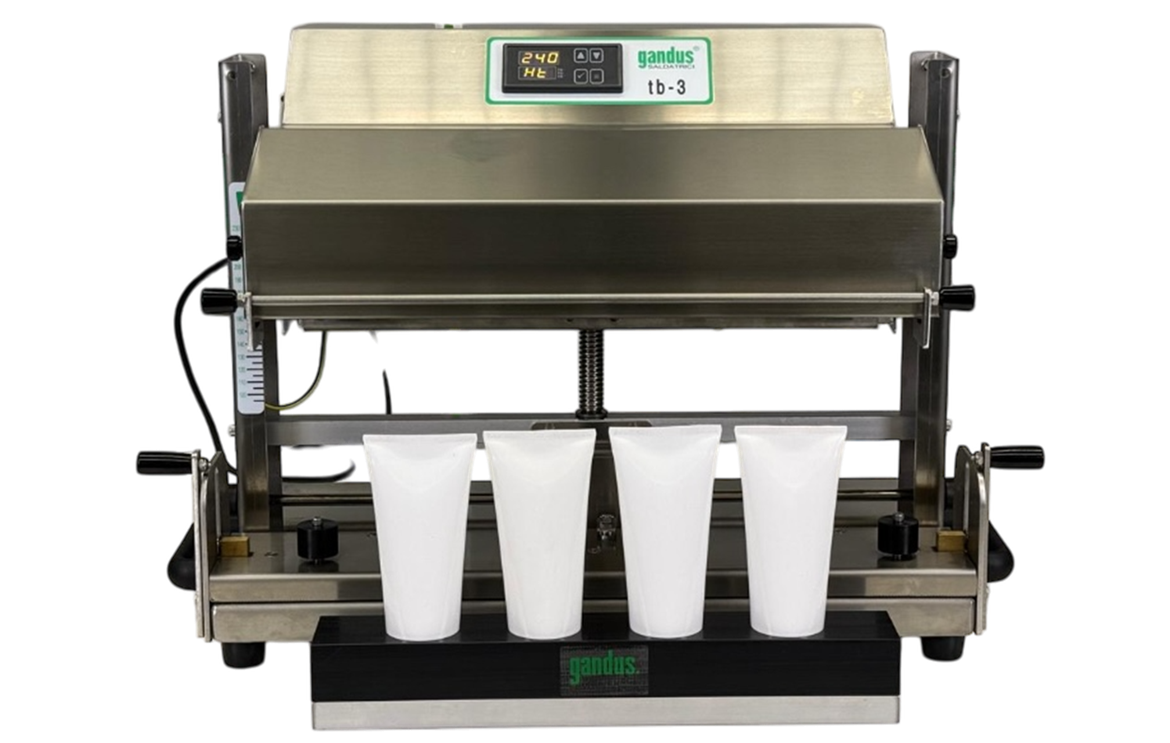

Automatic cycle for the simultaneous sealing of 4 or 6 tubes.
Sealing time, cooling time, cooling temperature electronically controlled.
Automatic regulation of cycle and sealing pressure.
Autocal function
Average productivity 600 tubes/h
Special tube-holder loaders with other dimensions available on request.
Controls, adjustments and alarms
Electronic control of sealing times, cooling times and cooling temperature.
Coding system
Punch coding system on request.
Simultaneous coding of 4 or 6 tubes.

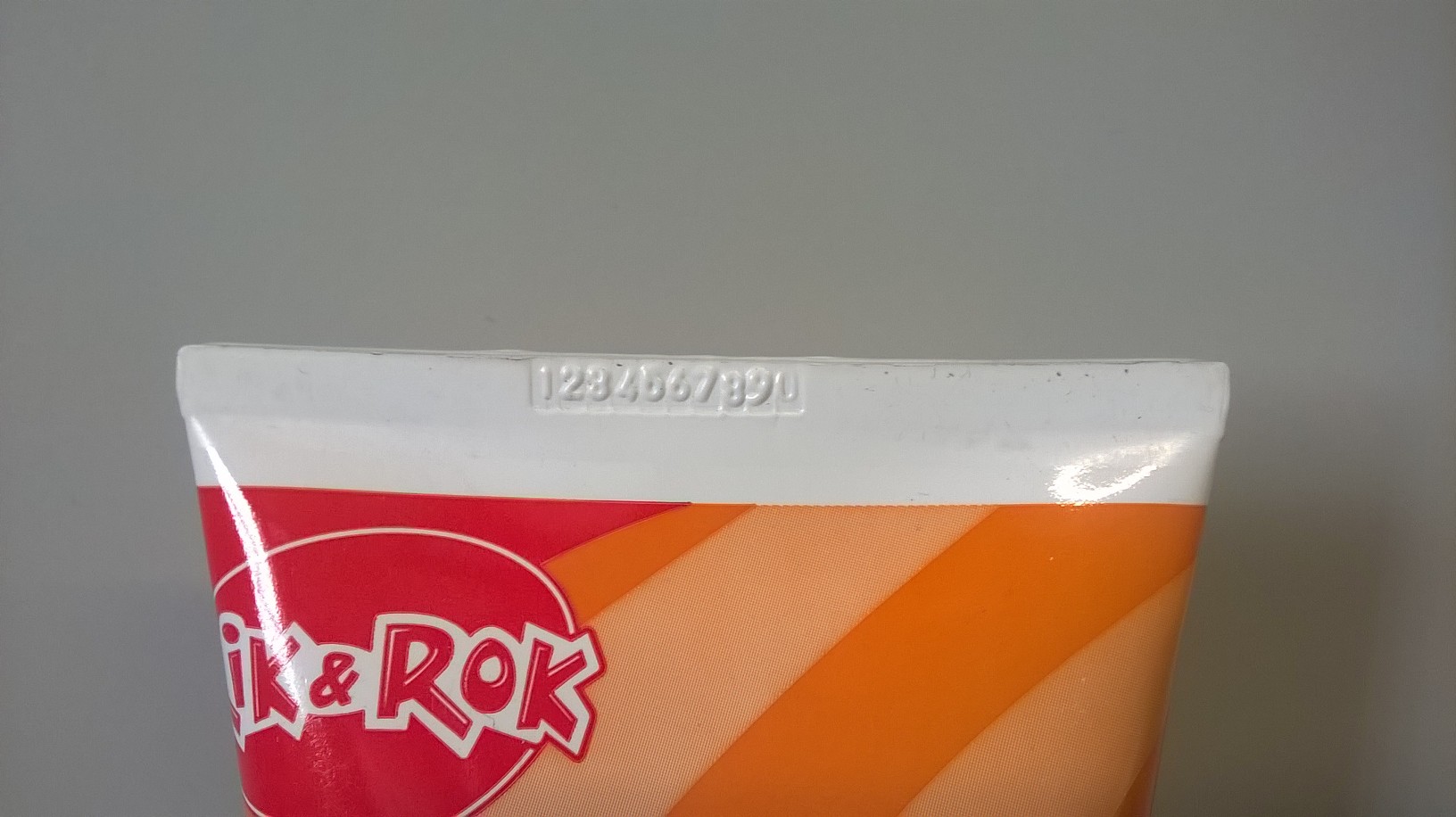

During the sealing phase, the machine prints an alphanumeric code of up to 10 characters per tube inside the sealing band.
Accessories on request
Coding system
Tube loaders for special diameters
Additional punch holder bar
