Semi-automatic impulse heat sealers with digital control of sealing parameters.
Designed for sealing of PE, PP and lightweight laminated bags.
Advantages and Benefits
Robust, versatile, reliable and long-lasting heat sealer.
Designed to seal any heat-sealable material.
The 6-position switch in combination with the timer offers a wide range of adjustments to meet even the most specific needs.
Digital control of sealing parameters.
Double sealing bar and separate time and temperature adjustment to seal bags of any thickness, even containing wet or dusty products.
Technical Features
Applications
Food, cosmetics, automotive, electronics, small parts, e-commerce packaging, pellets and agriculture, chemical products
Heat Sealable Materials and Packaging
Polypropylene, polyethylene, lightweight composites.
Also ideal for sealing bags containing wet or dusty products.
Sealing
Impulse sealing process
Sealing length mm 460 or mm 610
Sealing height mm 4
Flat seal
Double sealing bar
Construction features
Painted steel construction
Double sealing bar and separate time and temperature adjustment
Construction to CE standards
Operation
Manual and semi-automatic operation with closing by means of an electromagnet.
Operation via electric pedal button or automatic cycle settable with digital control of sealing parameters.
Digital timer with liquid crystal display for high precision in setting and immediate reading of the set times.
Independent regulation of sealing power via 6-position switch.
Double sealing bar and separate time and temperature adjustment for sealing bags of any thickness, even containing wet or dusty products.
Interface
Liquid crystal display for high precision in setting and immediate reading of the set times
Versions
Sealing length mm 460
Sealing length mm 610

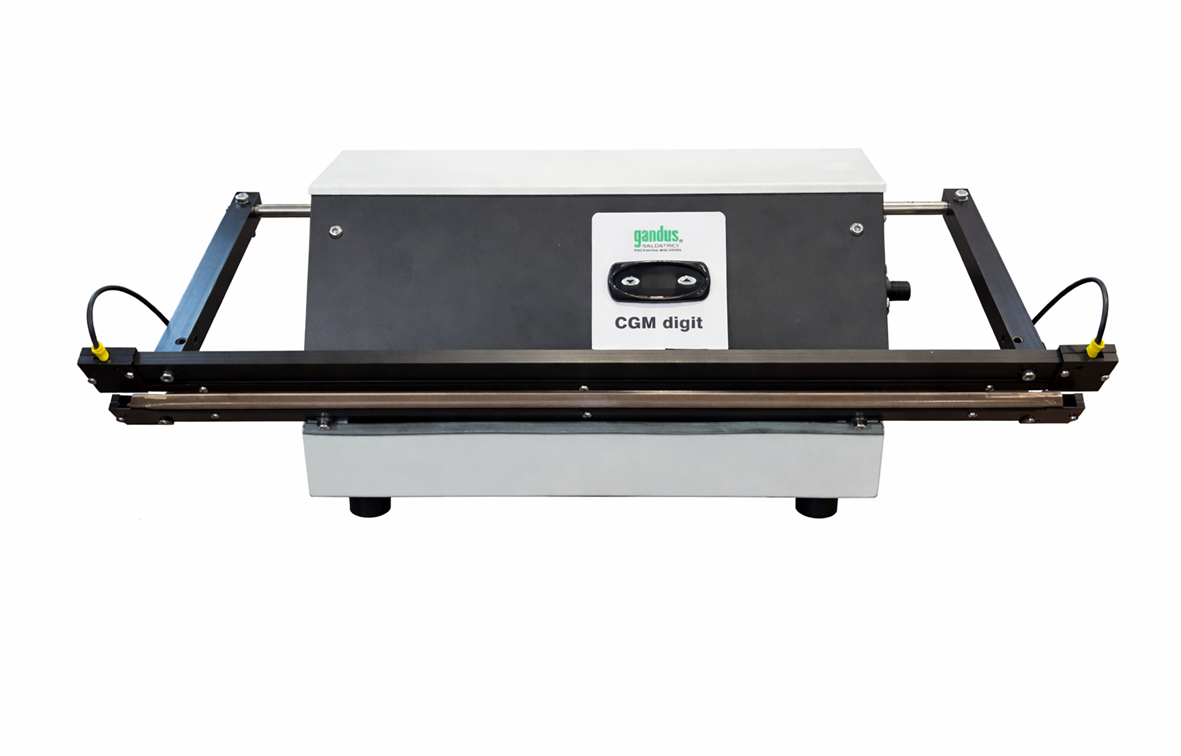

Countertop version

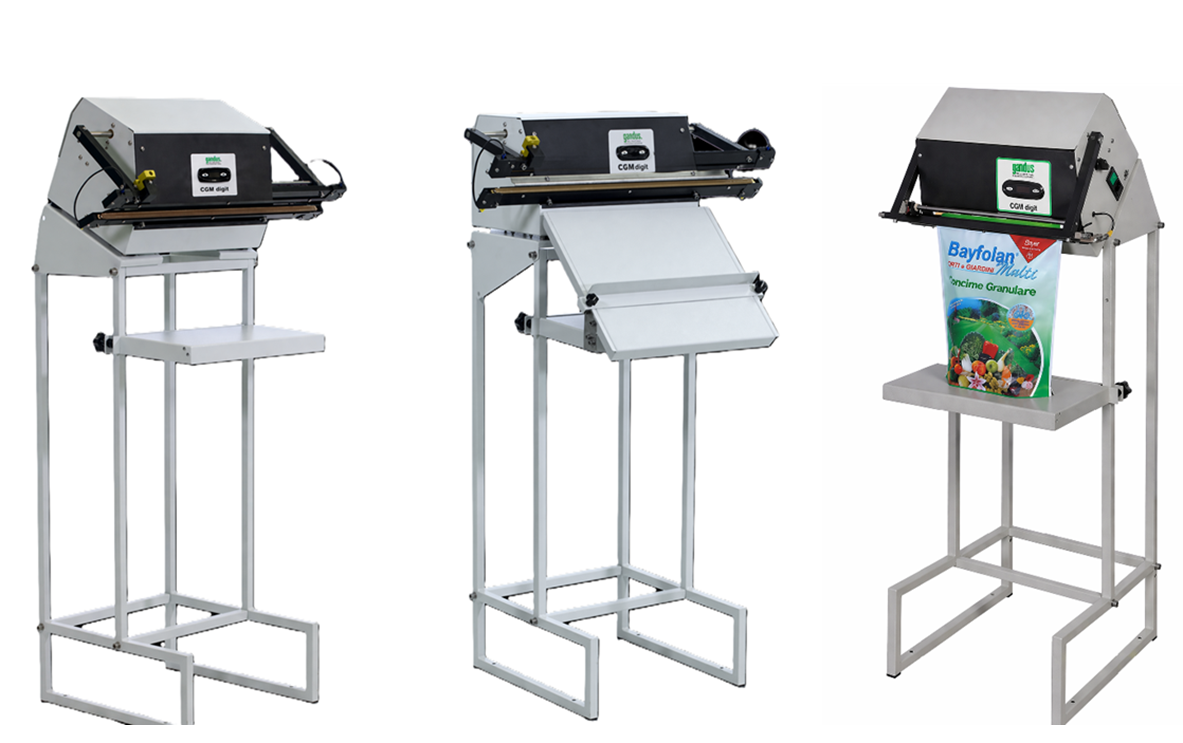

Full version with ground support
GT version with built-in trimmer
Combined with dosing systems to create an efficient packaging line for small production batches.
Accessories

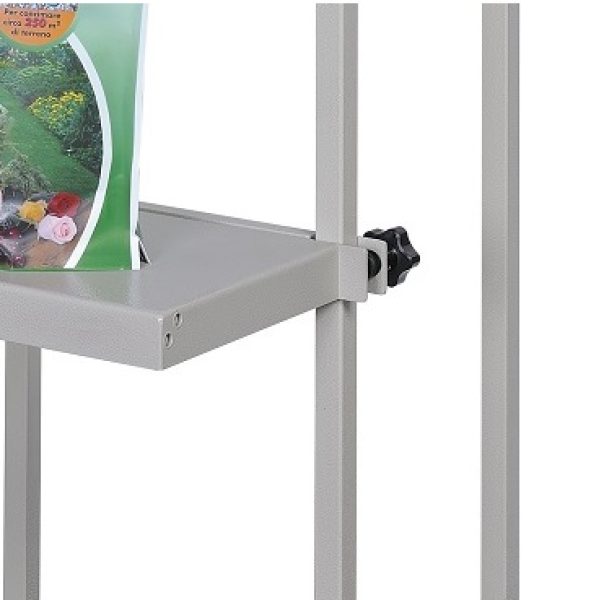

Independent supports complete with worktops adjustable in height, in horizontal or inclined position.
Packaging materials
Gandus Saldatrici Materials Division offers top-notch polyethylene film, selected to guarantee maximum product protection and perfect integration with the CGMdigit heat sealer.
Materials are available in stock in different sizes and thicknesses or can be ordered on request.
Available neutral or with custom print.
This way you can quickly and easily achieve the highest standards of operational efficiency, cost reduction and packaging quality.
Reach out for expert commitment-free advice at info@gandus.it
