Engineered for Efficiency. Designed for Small and Medium-Batch Excellence.

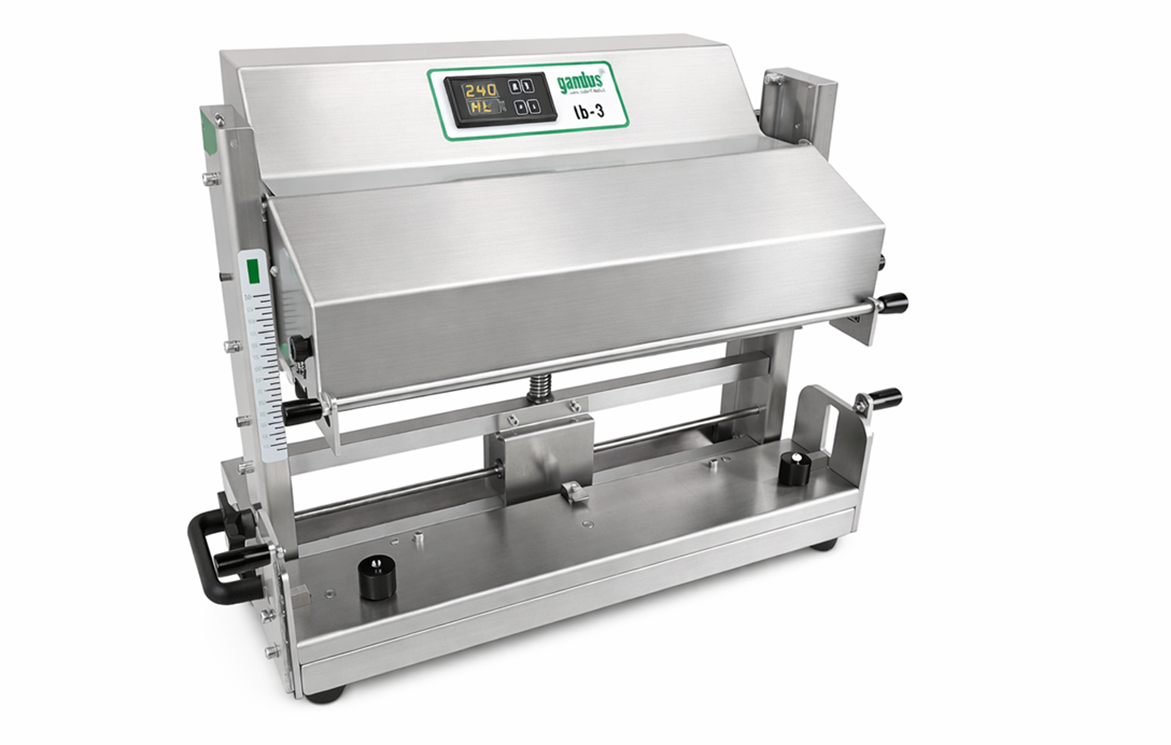

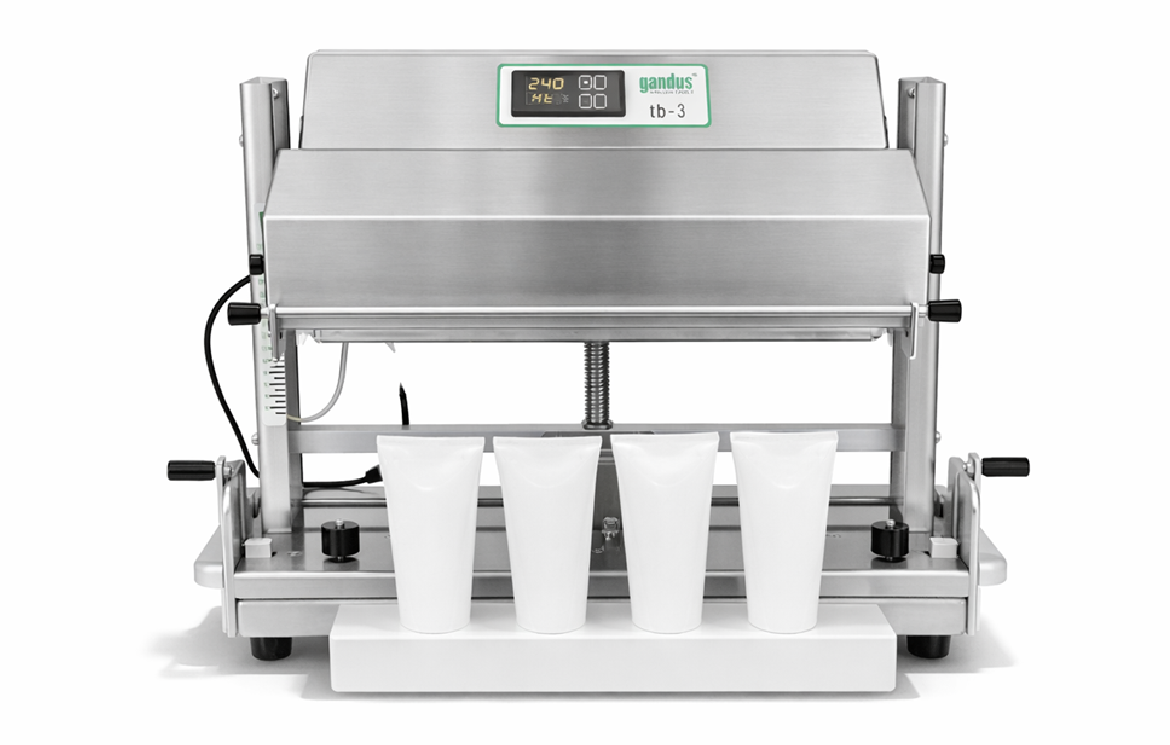

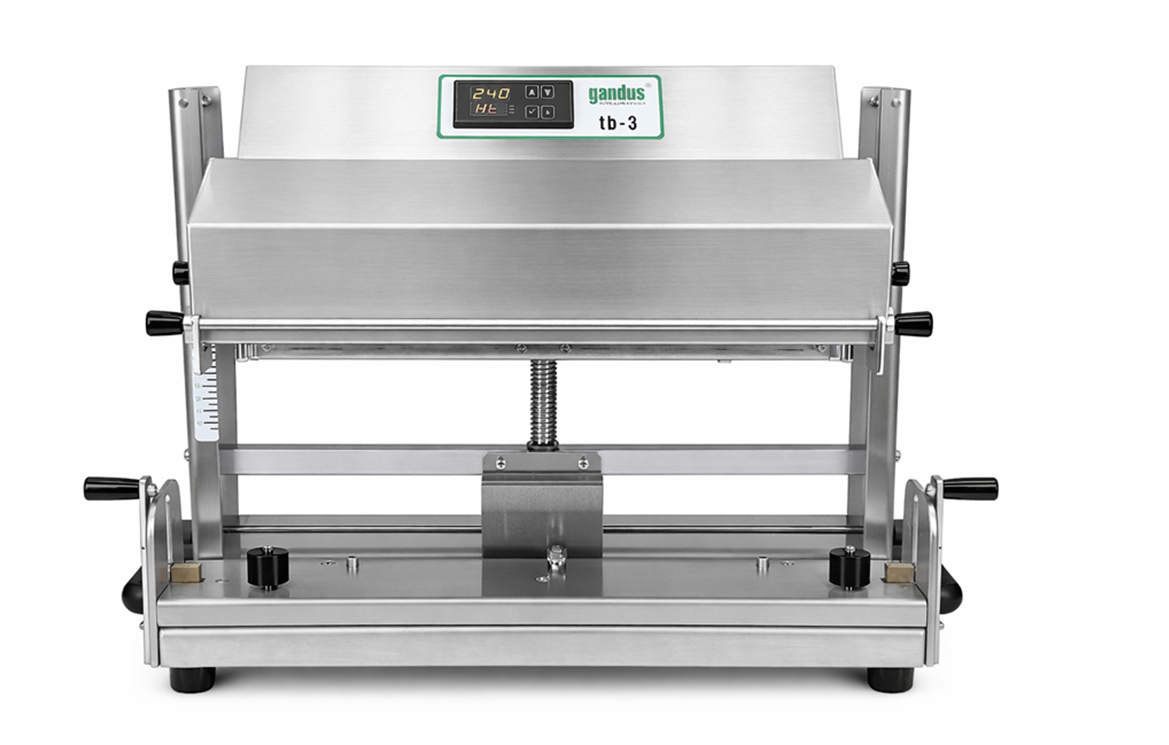

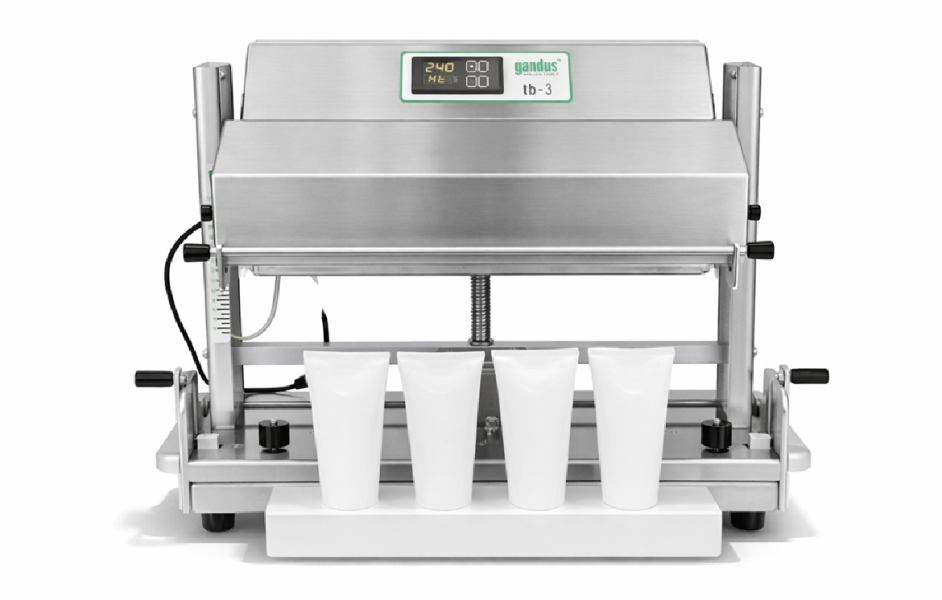

Table-Top Impulse Heat Sealer in Stainless Steel
A versatile, durable, and hygienic solution designed for closing and coding PE, PP, and PVC tubes of variable lengths and diameters. Engineered for small and medium-scale producers, this sealer combines precision, efficiency, and ease of use to guarantee consistently high-quality results.
Why choose Gandus tb-3?
Perfect solution for small producers and quality/production testing
Compact Table-Top Design
Ability to produce small batches efficiently without waste.
Ideal for testing and experimentation while ensuring reliable results.
Lower initial investment for small producers looking to innovate their production process.
Variable Tube Accommodation
Adjustable settings allow efficient sealing on tubes of different lengths and diameters, offering maximum flexibility in production and reducing the need for multiple machines.
Durability, Resistance, Hygiene, Stainless steel sustainability
Long machine lifespan with reduced need for repairs or replacements.
Easy to clean and maintain.
Recyclable hygienic stainless steel.
Consistent and reliable process, ensuring high-quality end products.
Energy-efficient Operation
Impulse heat only activates during sealing, consuming less power and lowering operating costs.
User-Friendly Operation
Intuitive controls and minimal maintenance allow operators to focus on production efficiency rather than machine adjustments.
Maximum performance
Precision and efficiency thanks to advanced controller that sets a new standard in terms of precision and efficiency.
Simplified workflow due to intuitive interface and advanced controls to reduce operational errors.
Repeatability and consistency thanks to preheating temperature and differential settings that ensure uniform results every time.
Integrated on-demand punch coding system during sealing
Product traceability with alphanumeric codes up to 10 characters directly on the sealing band
Simultaneous coding of 4 or 6 tubes, boosting productivity.
Optimized graduated head height adjustment
Quick and precise adjustment for tubes of varying sizes.
Reduced setup time and improved operational safety.
More uniform sealing results, avoiding defects.Technical Features
User Advantages at a Glance
✅ Reliable, leak-proof seals on multiple tube types.
✅ Fast setup and adjustment for tubes of various sizes.
✅ Traceable, coded packaging for compliance and branding.
✅ Durable, hygienic, and easy-to-clean machine.
✅ Compact footprint for limited spaces.
✅ Consistent results every cycle, reducing waste and defects.
Technical Features
Applications
Confectionery, cosmetics, chemicals
Heat Sealable Materials and Packaging
Tubes in PE, PP, PVC of variable length, from mm 105 to mm 220, with diameter up to mm 60.
Sealing
System of Impulse
Flat sealing
Sealing height mm 4
Temperature 50° ÷ 250° C ± 1°
Construction
Stainless Steel Construction
Pre-heated front sealing bar
Rear sealing bar with flat band
Thermo-controlled punch holder code bar
Innovative controller
Graduated positioning scale
Punch coding system on request.
Complete with 2 loaders of your choice, standard sizes Ø: mm 20-25-30-35-40-50 and thermo-controlled punch holder bar with 4 or 6 seats
Operation
Automatic cycle for the simultaneous sealing of 4 or 6 tubes.
Sealing time, cooling time, cooling temperature electronically controlled.
Automatic regulation of cycle and sealing pressure.
Autocal function
Average productivity 600 tubes/h
Special tube-holder loaders with other dimensions available on request.
Controls, adjustments and alarms
Electronic control of sealing times, cooling times and cooling temperature.
Coding system
Punch coding system on request.
Simultaneous coding of 4 or 6 tubes.
During the sealing phase, the machine prints an alphanumeric code of up to 10 characters per tube inside the sealing band.
Accessories on request
Coding system
Tube loaders for special diameters
Additional punch holder bar
