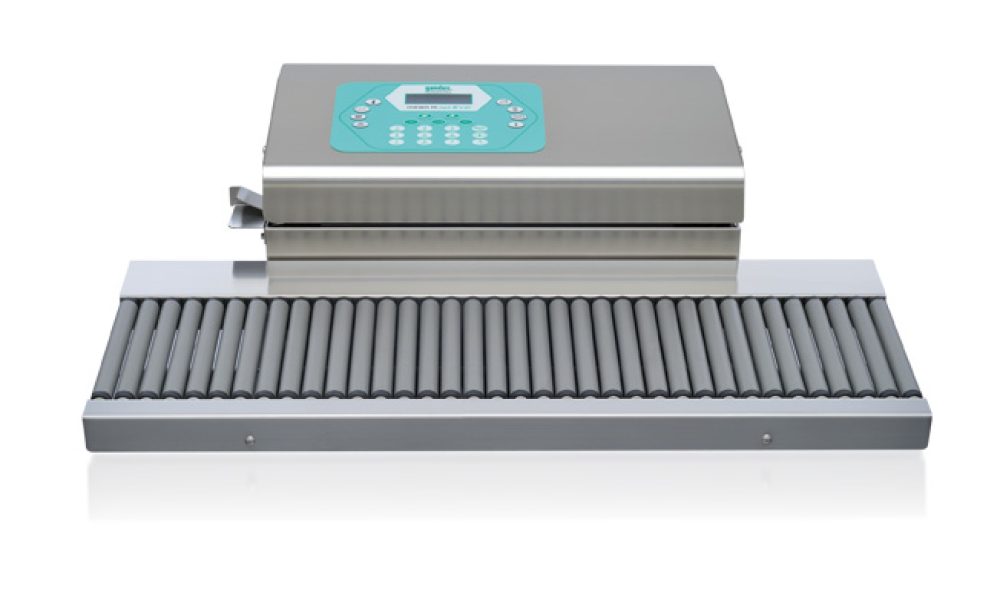

ISO 11607.2 Validable Rotary Heat Sealer with USB Port and SecurScan Data Upload Software.
The revolution for all hospital and industrial facilities that want to equip themselves with basic heat sealers Validable according to ISO standards.
Sealing mm 15 in accordance with DIN 58953.7 standards.
Heat sealable materials: EN 868-5 pouches and rolls, TYVEK pouches, EN 868-4 paper/paper pouches, with gussets, PP laminated aluminium.
Sealing speed 10 m/min.
Temperature regulation 10-200°C. tolerance +/- 1%.
Compliance with World Health Organization guidelines, World Federation for Hospital Sterilization Sciences (WFHSS)
Benefits and Advantages
Packaging Process Validation
New generation hardware and software for accurate control of sealing parameters to ensure maximum compliance with ISO 11607.2 Standards and International Guidelines EN-ISO TS 16775.
Safety
Sealing height mm 15 for correct peelability and maximum safety.
Operator Interface
Clear 4-line, 20-character liquid crystal display and flex strip type alphanumeric adhesive membrane keyboard.
Efficient and effective interfaces
RS 232 serial socket for interface with PC, label printer and barcode scanner.
Codable print
Built-in single-line printer.
All print data can be encoded on board the machine and immediately recalled from memory.
Complete and efficient traceability
Complete, fast, simple and safe traceability, in full compliance with regulations thanks to the USB port. No costs related to the purchase of dedicated hardware as the traceability files are downloaded to storage pen drives.
The USB port also allows for simple, fast and safe software updates for the machine.
Securscan Data Upload Software
Gandus Saldatrici data loading system, extremely safe and easy to use, able to read the sealing data for each sealed bag and to automatically define the machine functions and parameters.
The Securscan Data Upload Software allows you to create, print and download barcodes containing all the sealing parameters of each pouch ID to an external PC.
The system is extremely simple to install and works on any PC.
Sanitization at the highest levels
AISI 304 stainless steel cover for maximum sanitization.
Energy saving
Designed and built for process optimization in full compliance with energy saving efficiencies.
Materials
EN 868-5 pouches and rolls, TYVEK envelopes, paper/paper pouches EN 868- 4, with gussets, Laminated aluminium, PP.
Accessories
PS 654 worktop
RL 80 roller conveyor
PR H40 roll holder complete with cutting device
PR H50 roll holder complete with cutting device
PRN 2000 label printer
SecurScan Data Upload Software
Compliance
UNI EN ISO 11607-2
UNI EN 868-5
EN ISO TS 16775
DIN-58953 7
Direttive 2006/42/EC-2014/30/UE-2014/35/UE
UNI/TR 11408
Sterilization Guidelines-MEMO 5
Produced in a Company certified with the UNI EN ISO 9001:2015 Quality System
Testing and Validation Services
Gandus Saldatrici offers a range of Testing and Validation Services to ensure safe and reliable daily monitoring of medical sealing machines for sterilization pouches in accordance with ISO 11607.1.2 and ASTM F1929 Standards. learn more
