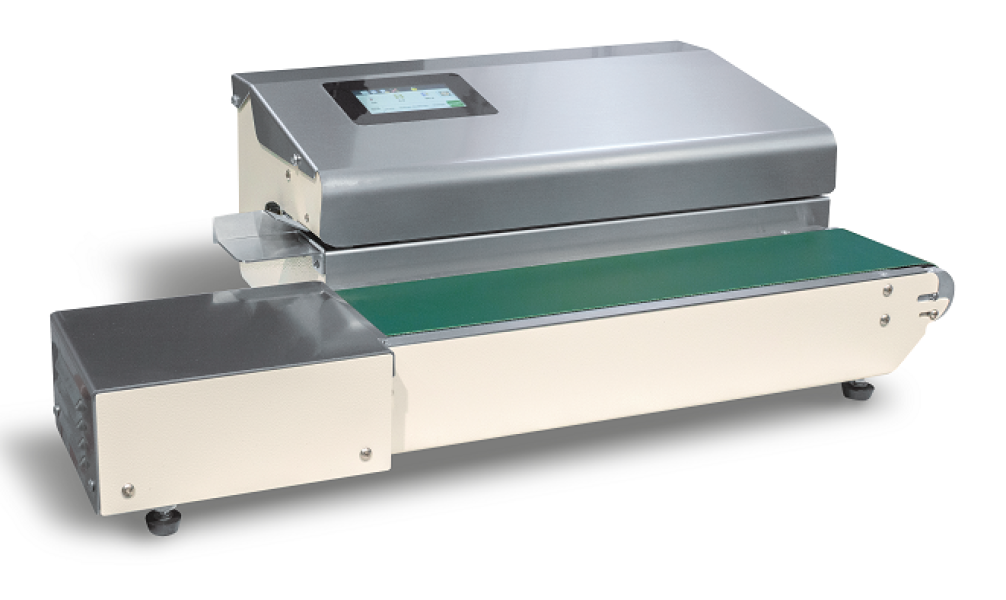

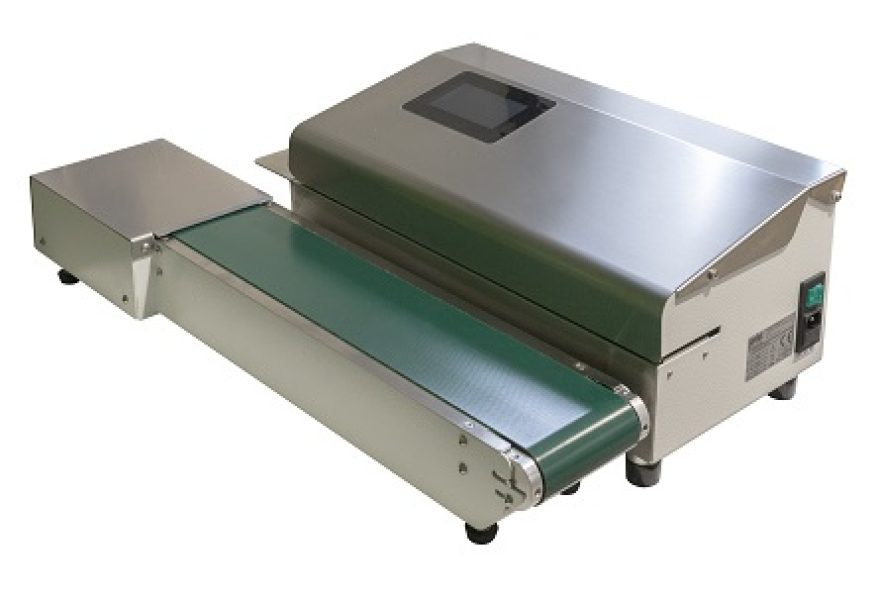

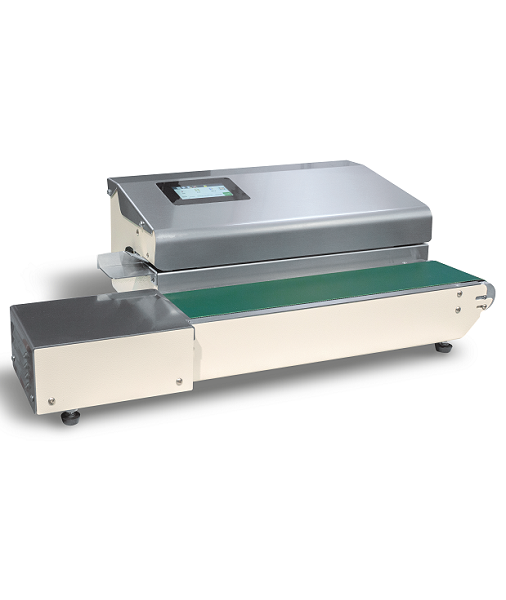

New ISO 11607.2 Validatable rotary heat sealer with programming touch screen, Traceability system, interface with Label printer, Barcode reader and remote PC connection.
mm 9 knurled sealing (flat option).
Controlled sealing speed – 6 m/min (option 4 m/min; 8 m/min).
Temperature regulation 10-220°C.
Heat sealable materials: EN 868-5 pouches/rolls, TyvekR pouches, EN 868-4 paper/paper pouches, gusseted pouches, laminated aluminium pouches, PP pouches, header bags, polyethylene.
Benefits and Advantages
Packaging Process Validation
Accurate control of Sealing Parameters, to ensure constant and repeatable high quality over time, to guarantee maximum compliance with ISO 11607.2 Standards and international Guidelines EN-ISO TS 16775.
Safety
mm 9 knurled sealing (flat option) to ensure a perfect seal and easy and safe peeling.
Operator Interface

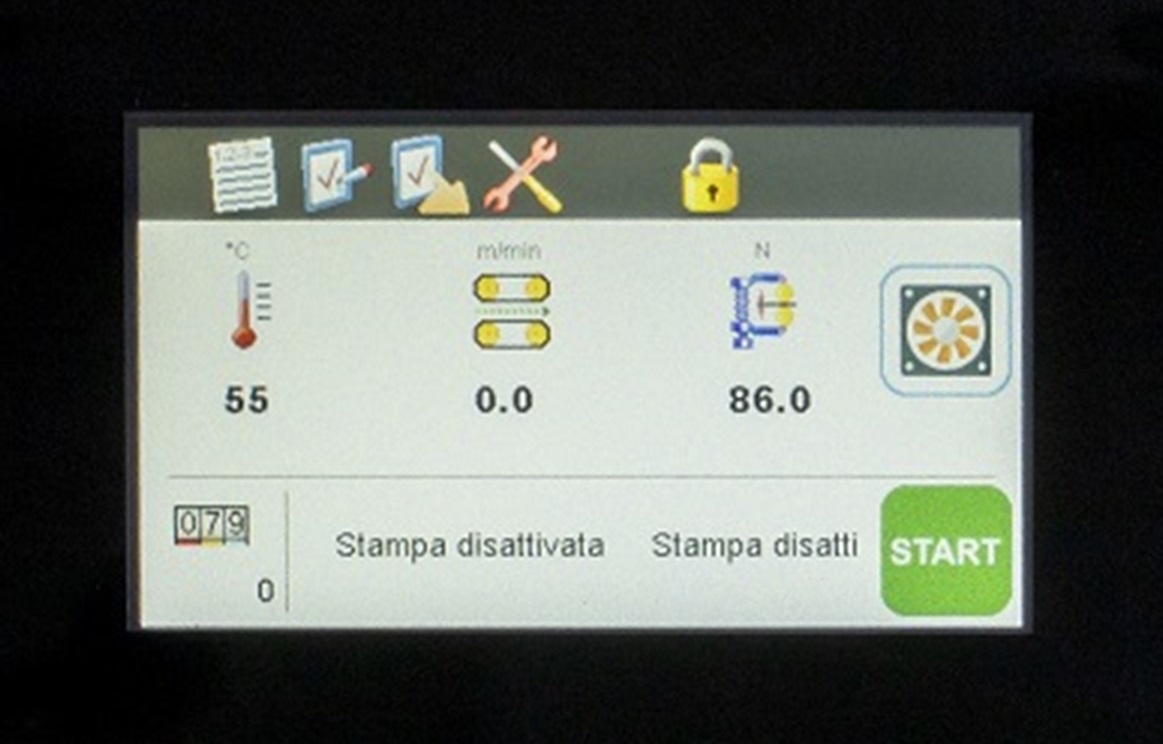

Equipped with a large and clear 4.3″ color touch screen.
Complete and efficient traceability
Complete with sensitive data tracking system for each sealed pouch to USB.
Efficient and effective interfaces
USB interface for connection to standard USB pendrive for loading batch, operator, catalogue, recipes, saving traceability data, updating heat sealer firmware
RS 232 serial port for connection to barcode reader, label printer, remote PC.
Efficient printing
All the required data can be printed with the label printer connected to the sealing machine in a simple, fast and safe way.
Sanitization at the highest levels
AISI 304 stainless steel cover for maximum sanitization.
Energy saving
Designed and built for process optimization in full compliance with energy saving efficiencies.
Materials
EN 868-5 bags/rolls, TyvekR bags, EN 868-4 paper/paper bags, gusset bags, laminated aluminium bags, PP bags, header bags, polyethylene.
Accessories
Motorized conveyor belt
PS 654 workt table
RL 80 sliding roller conveyor
Barcode Reader
PRN 2000 label printer
Compliance
UNI EN ISO 11607.2
UNI EN 868-5
EN ISO TS 16775
DIN-58953 7
Direttive 2006/42/EC-2014/30/UE-2014/35/UE
UNI/TR 11408
Sterilization Guidelines-MEMO 5
Produced in a Company certified with the UNI EN ISO 9001:2015 Quality System
Testing and Validation Services
Gandus Saldatrici offers a range of Testing and Validation Services to ensure safe and reliable daily monitoring of medical sealing machines for sterilization pouches in accordance with ISO 11607.1.2 and ASTM F1929 Standards. learn more
