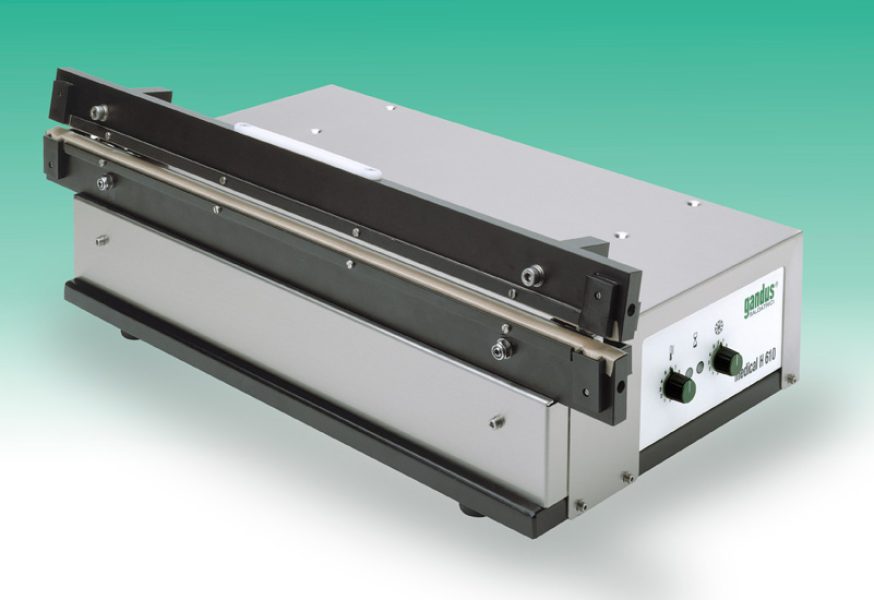

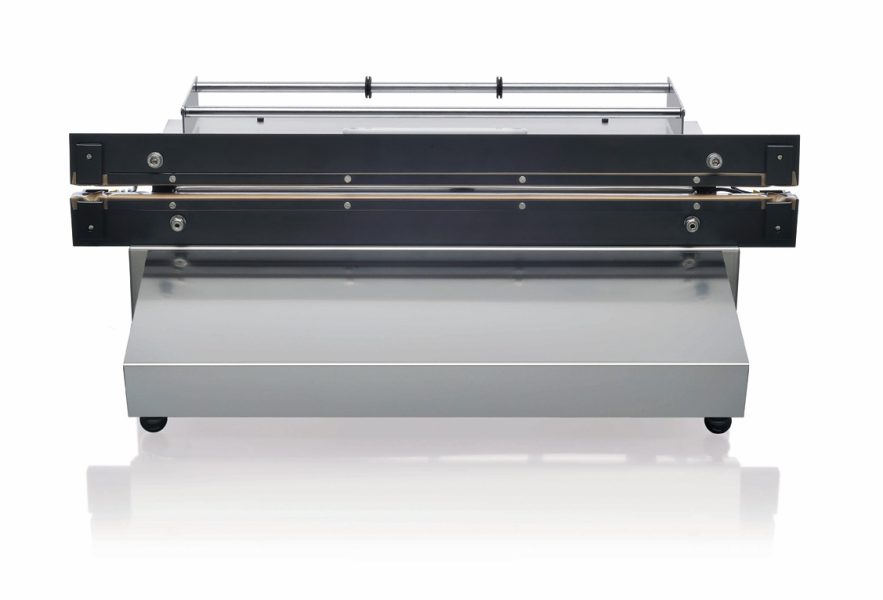

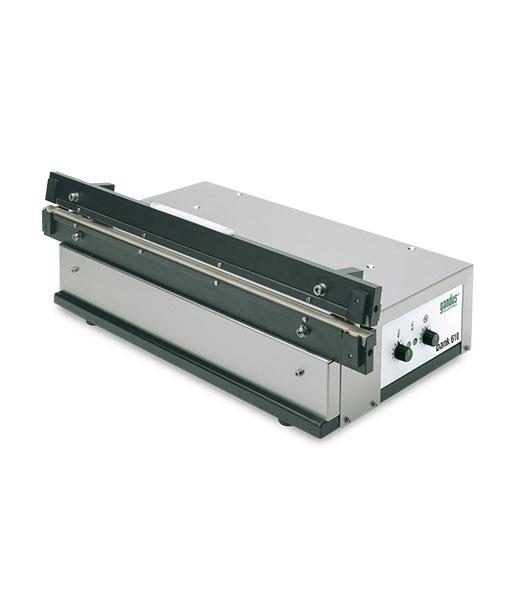

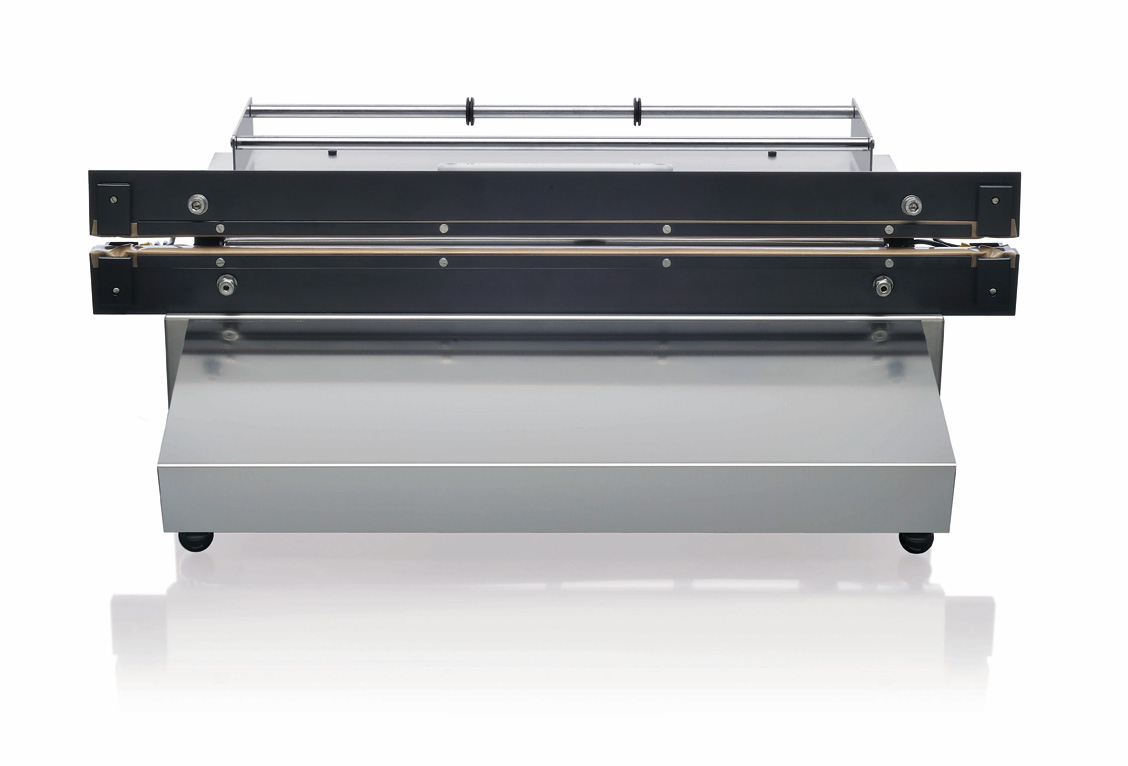

Impulse heat sealer for sealing medical pouches and rolls according to DIN 58953-7.
AISI 304 stainless steel cover.
Impulse sealing, flat.
Sealing height mm 8.
Max sealing lengths mm 460, mm 610, mm 710.
Advantages and Benefits
Ergonomics at the highest levels
Ease of use.
Maximum safety for the operator.
Manual or electric pedal operation (option).
Reliability

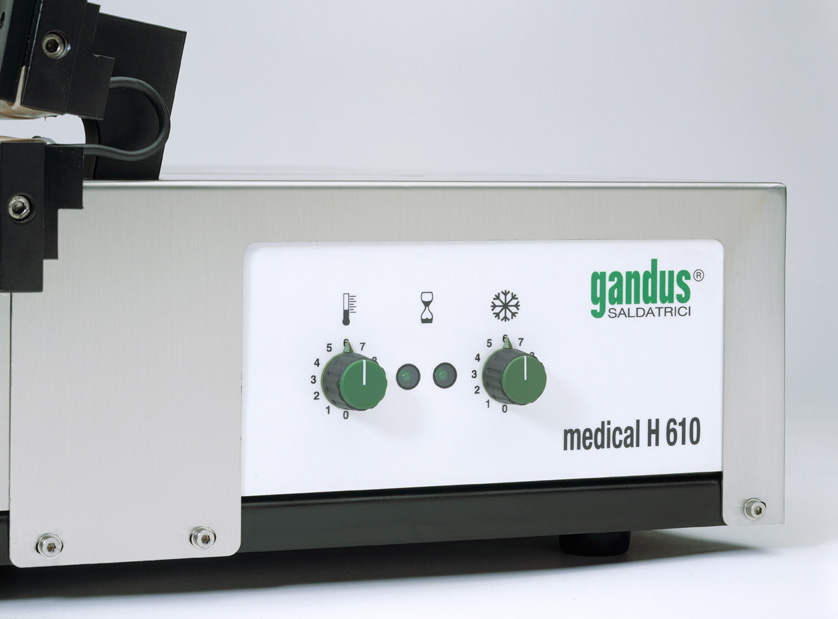

Electronic control of sealing and cooling times, adjustable independently.
Safety
mm 8 flat seal for a perfect seal and effective peelability.
Double sealing bar, with the possibility of working with a single sealing bar.
Flexibility

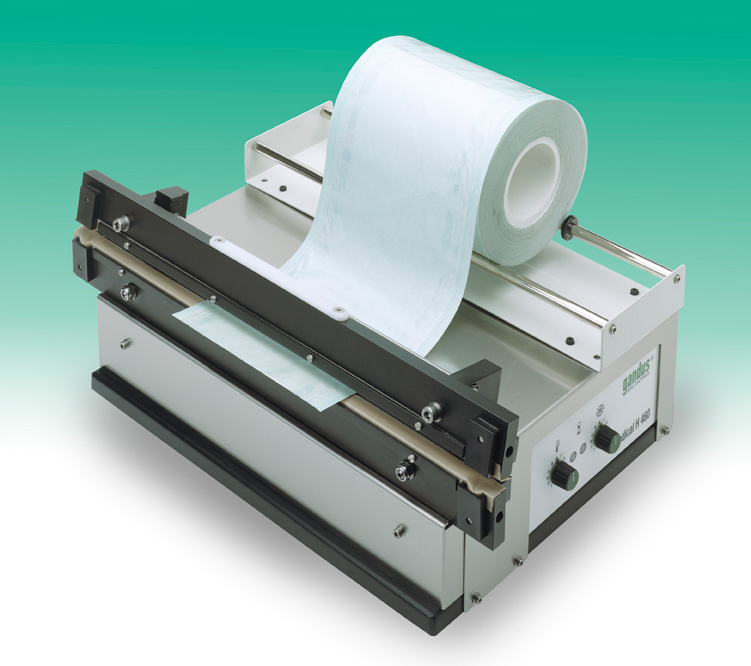

Can be equipped with built-in roll holder and cutting system; cutting length mm 370, mm 500, mm 610 depending on version.
Sanitization
Stainless steel cover for maximum cleaning and disinfection.
Energy saving
Designed and manufactured to allow process optimization, in full compliance with energy saving efficiencies.
Materials
EN 868-5 bags and rolls, EN 868-4 paper/paper bags, gusseted bags, laminated aluminium, in PP/paper, in PE, Header bags.
Versions
Sealing lengths mm 460, mm 610, mm 710.
Standard and GT version, with built-in roll holder and cutting device.
Accessories

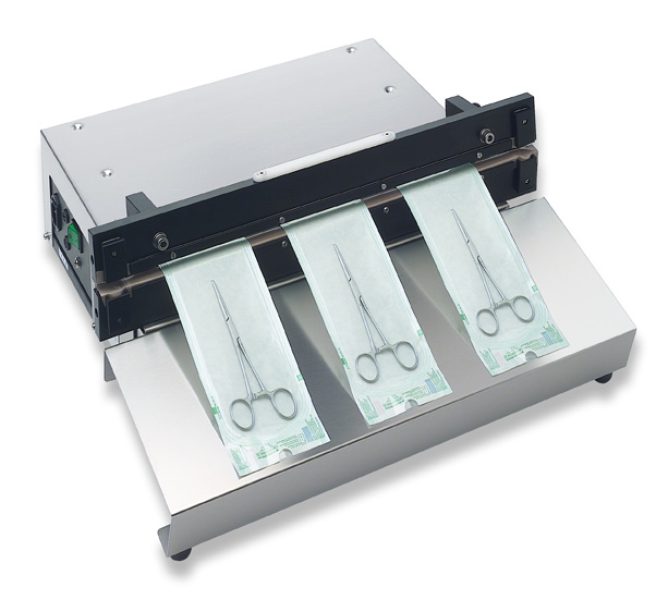

Medical H worktop
PR H40 roll holder complete with cutting device
PR H50 roll holder complete with cutting device
Compliances
UNI EN 868-5
DIN-58953 7
2006/42/EC-2014/30/UE-2014/35/UE
Produced in a Company certified with the UNI EN ISO 9001:2015 Quality System
Seal Integrity Testing
Gandus Saldatrici offers a range of Routine Indicator Tests for the daily control of the integrity of seals made with sterilization pouch sealing machines. learn more
