minirò Qube – UDI Ready Sealing
Reliable. Connected. Validatable rotary sealer.
UDI-Ready Sealing for the Future of Medical and Pharmaceutical Packaging.
• ISO 11607.2 Validatable
• mm 9 seal
• Variable speed
• Integrated print system for UDI print
• Double colour Touch screen
• IP connectivity and Networking
• Two versions for excellent sealing results on all materials
• Traceability
• STANDARDS: Directives 2006/42/CE; 2014/30/UE; UNI EN ISO 11607-2:2020; World Health Organisation Guidelines; World Federation for Hospital Sterilization Sciences Guidelines; UNI EN 868-5; EN ISO TS 16775; DIN 58953-7; UNI/TR 11408:2011; EU GMP Annex 1: manufacture of Sterile Medicinal Products
• Manufactured in a UNI EN ISO 9001:2015 Quality System Certified Company
DD 300 digit
Semi-automatic hot bar heat sealer
• Compact table top
• mm 300 x mm 8 / mm 13 sealing
• Digital control of sealing parameters
• Materials: polypropylene, aluminium, heat-sealable paper coupled materials
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
MH 460/610
Impulse heat sealer for materials of any thickness
• Flat sealing mm 460 and mm 610 x mm 8
• Double sealing bar
• Control of sealing parameters
• Applications: food, automotive, cosmetics, electronics, small parts, e-commerce, chemicals
• Materials: PE and coupled materials, even of high thickness
• Manufactured in a UNI EN ISO 9001:2015 Certified Company

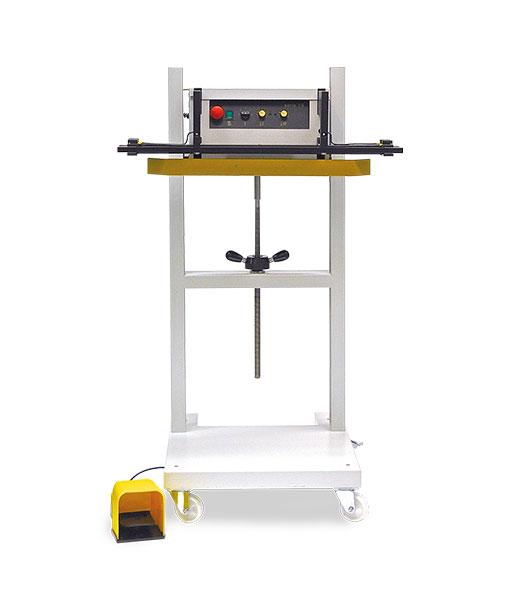

TS 72
Industrial, semi-automatic, impulse heat sealer
• Sealing mm 720 x mm 8
• Double sealing bar
• Applications: industrial, medical, food, chemical
• Materials: polyethylene, aluminium and paper laminates
• Manufactured in a UNI EN ISO 9001:2015 Certified Company

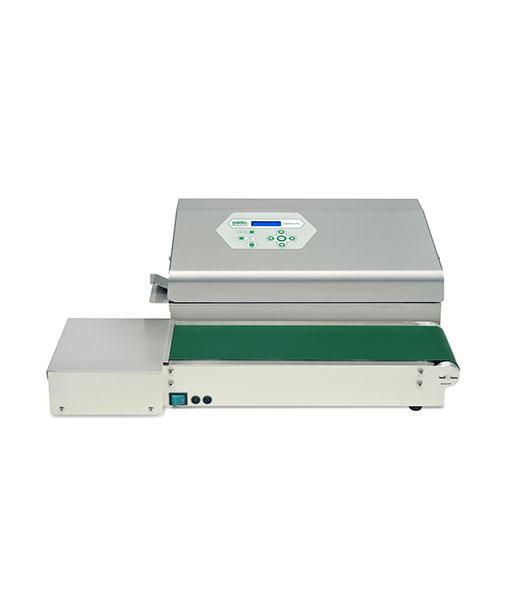

minirò poly
Rotary heat sealer for polyethylene, polypropylene and heat-sealable coupled materials bags.
• mm 9 knurled seal
• Speed 6m/min
• ISO 11607.2 Validable version
• Printing
• Materials: polyethylene, polypropylene and heat-sealable coupled materials

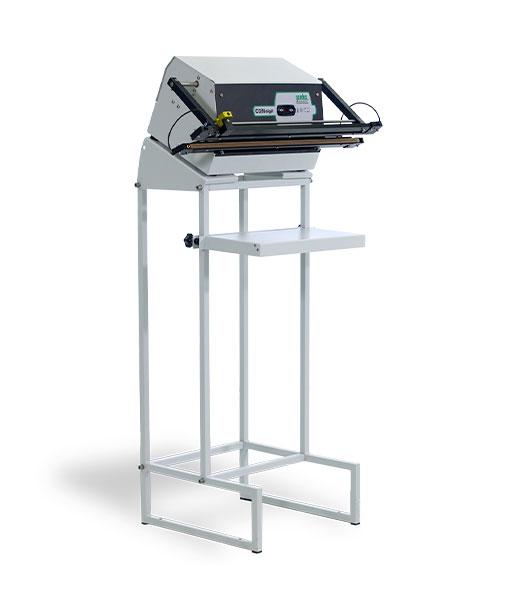

CGM digit
Heavy duty semi-automatic, impulse heat sealer
• Sealing mm 460/610 x mm 4
• Digital control of sealing parameters
• Bench or floor stand
• Trimmer option
• Materials: polypropylene, polyethylene, lightweight laminates
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
Pura
Latest generation ISO 11607.2 Validatable medical rotary heat sealer, with essential and clean lines. The cutting edge of the most technological design.
• Management from 4.3” colour touch screen
• Sealing 15mm
• SmartPrint automatically adjusts font size to pouch width
• STANDARDS: UNI EN ISO 11607-2; UNI EN 868-5; EN ISO TS 16775; DIN-58953 7; Directives 2006/42/EC-2014/30/UE-2014/35/UE; UNI/TR 11408; Sterilization Guidelines-MEMO 5; EU GMP Annex 1: manufacture of Sterile Medicinal Products; World Health Organization guidelines; World Federation for Hospital Sterilization Sciences (WFHSS)
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company
minirò H-net Evo
Rotary Sealer Validable ISO 11607.2 with Securscan Data Upload Software
• Reliable performance for intensive medical devices packaging
• Validable according to ISO 11607.2, ISO TS 16775, EN 868-2, DIN 58953-7 standards.
• Sealing mm 15
• Sealing speed 10 m/min.
• Interfaceable with external systems
• Materials: EN 868-5 bags and rolls, TYVEK bags, EN 868-4 paper/paper bags, with gussets, Laminated aluminium, PP
• STANDARDS: UNI EN ISO 11607-2; UNI EN 868-5; EN ISO TS 16775; DIN-58953 7; Directives 2006/42/EC-2014/30/UE-2014/35/UE, UNI/TR 11408; Sterilization Guidelines-MEMO 5
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company
minirò poly VP Touch
New rotary heat sealer validated to ISO 11607.2 with programming touch screen.
• 9mm knurled or flat sealing
• 4.3″ colour touch screen
• Complete with traceability system
• USB and RS 232 interface
• Label printer
• STANDARDS: UNI EN ISO 11607.2; UNI EN 868-5; EN ISO TS 16775; DIN-58953 7; Direttive 2006/42/EC-2014/30/UE-2014/35/UE; UNI/TR 11408; Sterilization Guidelines-MEMO 5
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company
minirò H-seal Evo VP
Rotary heat sealer designed for hospital and industrial facilities that want to equip themselves with entry-level heat sealers Validable according to ISO standards
• Sealing 15mm
• Extended keyboard
• Bright 2-line 16-character display
• USB interface
• Interfaceable with label printer
• STANDARDS: UNI EN ISO 11607-2; UNI EN 868-5; EN ISO TS 16775; DIN-58953 7; Direttive 2006/42/EC-2014/30/UE-2014/35/UE; UNI/TR 11408; Sterilization Guidelines-MEMO 5
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company
rebiTech 230 series
Compact, reliable and easy-to-use rotary heat sealers for high production levels.
Highly customizable with options and accessories to meet the most diverse packaging needs.
• Sealing 12mm
• Sealing speed 8 m/min or 10 m/min (on request)
• Touch screen interface
• USB interface
• Traceability
• Integrated printing
• ISO 11607.2 Validable versions
• STANDARDS: UNI EN ISO 11607-2; UNI EN 868-5; EN ISO TS 16775; DIN-58953 7; Directives 2006/42/EC-2014/30/UE-2014/35/UE; UNI/TR 11408; Sterilization Guidelines-MEMO 5
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company
Medical H ATDP RS25
Impulse heat sealers Validated according to ISO 11607.2, ISO TS 16775, EN 868-2, DIN 58953-7 standards.
• New ROPEX RESISTRON® RES 5450 controller
• Flat seal, mm 460 – mm 610 – mm 710 x mm 8
• RS 232 interface
• Remote Management Traceability Software
• 4-line, 20-character digital display
• Roll holder and cutting system
• STANDARDS: UNI EN ISO 11607-2; UNI EN 868-5; DIN-58953 7; 2006/42/EC-2014/30/UE-2014/35/UE; UNI/TR 11408; EU GMP Annex 1: Manufacture of Sterile Medicinal Products
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company
UNICA Series
Pneumatic impulse validatable heat sealers, in AISI 304 stainless steel, designed for LifeScience and for all applications that require high performance and maximum control.
• 7″ color touch screen management
• Sealing lengths mm 610, mm 810, mm 1010, mm 1210
• Sealing height mm 8
• Venturi air suction system with adjustable nozzle
• Easy Access App for remote interaction
• Maximum operational flexibility
• Mechanical or motorized support
• Val Pack service
• Audit Trail
• STANDARDS: ISO 11607.2; ISO TS 16775; EN 868-5:2019; DIN 58953-7; UNI/TR 11408:2011; Sterilization Guidelines-MEMO 5; EU GMP Annex 1: Manufacture of Sterile Medicinal Products; Directives 2006/42/EC-2014/30/UE-2014/35/UE
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company
UNICA Vacuum Series
Pneumatic Vacuum impulse Validatable heat sealers, in AISI 304 stainless steel, designed for LifeScience and for all applications that require high performance and maximum control.
• 7″ color touch screen management
• Sealing lengths mm 610, mm 810, mm 1010, mm 1210
• Sealing height mm 8
• Venturi air suction system with adjustable nozzle
• Easy Access App for remote interaction
• Maximum operational flexibility
• Mechanical or motorized support
• Val Pack service
• Audit Trail
• STANDARDS: ISO 11607.2; ISO TS 16775; EN 868-5:2019; DIN 58953-7; UNI/TR 11408:2011; Sterilization Guidelines-MEMO 5; EU GMP Annex 1: Manufacture of Sterile Medicinal Products; Directives 2006/42/EC-2014/30/UE-2014/35/UE
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company
SI Med
Pneumatic heat sealer Validated according to ISO 11607.2, ISO TS 16775, EN 868-2, DIN 58953-7 standards. Specifically designed for the medical, pharmaceutical, laboratory and chemical industries.
• Sealing mm 720 x mm 8
• Vertical / horizontal sealing
• Vacuum version (SI Vacuum Med)
• IP 65 version
• Numerous accessories
SI Vacuum Med
Pneumatic vacuum heat sealers. Validated according to ISO 11607.2, ISO TS 16775, EN 868-2, DIN 58953-7 standards.
• Sealing mm 720 x mm 8
• Venturi pump suction system
• Accurate control and recording of critical sealing parameters, to guarantee constant and repeatable high quality over time.
• Vertical / horizontal sealing
• Applications: medical, pharmaceutical, laboratory, chemical industry sectors
• IP 65 version
Vseal.it VP
The only automatic Seal-Cut sealing machine validated to ISO 11607.2 for the production of medical pouches with V-weld (Chevron weld), starting from a standard roll.
• Customized production flexibility
• Peelability, safety and correct opening of the bags
• High productivity
• Touch screen programming
• Interface with Traceability systems
• Savings in material, time, space
• STANDARDS: UNI EN ISO 11607-2; UNI EN 868-5: 2019; EN ISO TS 16775; DIN-58953 7; Directives 2006/42/EC-2014/30/UE-2014/35/UE; UNI/TR 11408:2011; Sterilization Guidelines-MEMO 5
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company

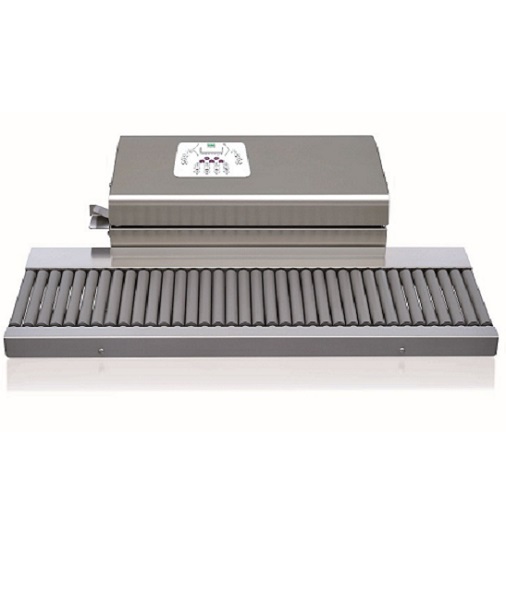

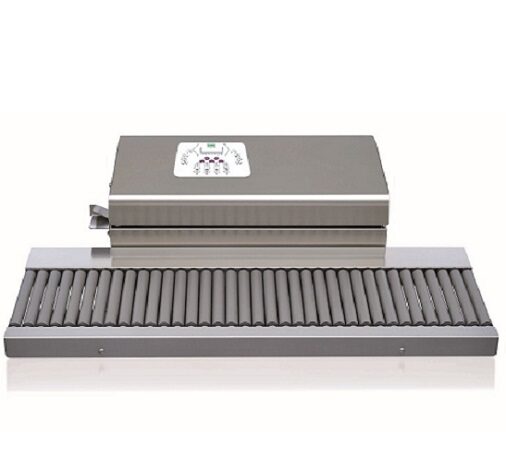

minirò H-data Evo
Rotary heat sealer for sealing medical pouches and rolls compliant with EN 868-5 and DIN 58953-7 standards.
• Sealing mm 15
• Sealing speed 10 m/min
• 20 character 4 line digital display and new alphanumeric keyboard
• Integrated 9-pin printer
• USB and RS 232 interface
• AISI 304 stainless steel cover
• STANDARDS: UNI EN 868-5; DIN 58953.7; 2006/42/CE; 2014/30/CE; 2014/35/CE; Sterilization Guidelines – MEMO 5
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company

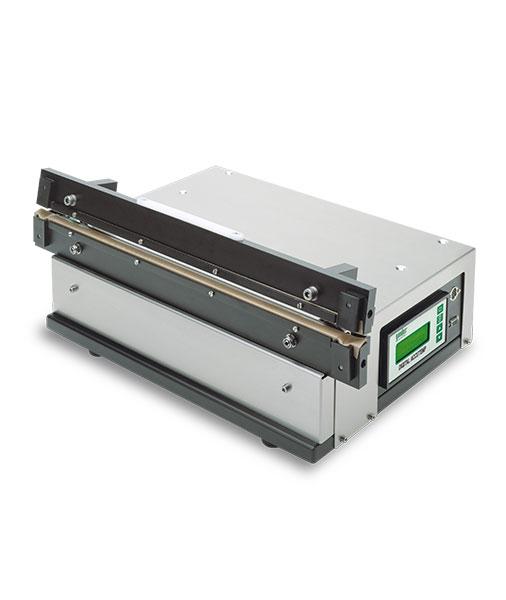

Medical H 460/610/710
Impulse heat sealer for sealing medical pouches and rolls according to DIN 58953-7
• Flat sealing mm 460/610/710 x 8mm
• Electronic control of sealing and cooling times
• AISI 304 stainless steel cover
• Can be equipped with integrated roll holder and cutting system; cutting length 370mm, 500mm, 610mm
• Roll holder and cutting system
• STANDARDS: UNI EN 868-5; DIN-58953 7; 2006/42/EC-2014/30/UE-2014/35/UE
• Produced in an UNI EN ISO 9001:2015 Quality System Certified Company
minirò H-seal Evo
Rotary heat sealer for sealing medical pouches and rolls according to UNI EN 868-5:2009 and DIN 58953-7 standards
• Ideal for high production
• 15mm seal
• Speed 10 m/min
• AISI 304 stainless steel cover
• Adjustable input guide
• Two-line liquid crystal display
• Quick and simple temperature and counter programming menu
• STANDARDS: UNI EN 868-5; DIN 58953.7; Directives 2006/42/EC; 2014/30/EU; 2014/35 EU
• Manufactured in an UNI EN ISO 9001:2015 Quality System Certified Company

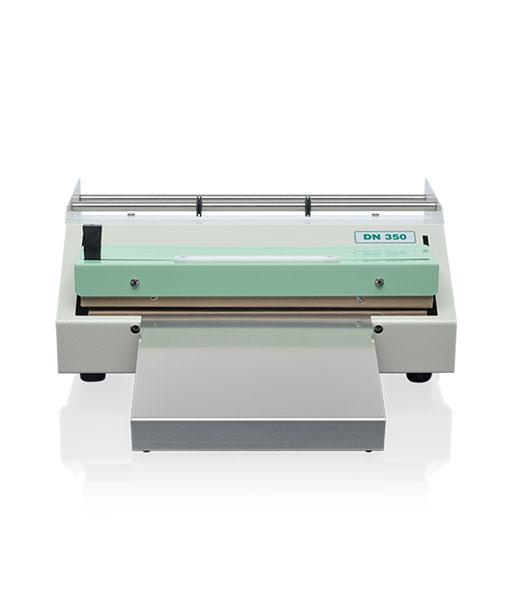

DN 350
Impulse heat sealer for sealing medical pouches and rolls according to DIN 58953-7. Simple and safe to use, ideal for medical and dental practices.
• Sealing mm 350 x mm8
• Quick operation
• Complete with roll holder and cutting system.
• Electronic control of sealing times
• Materials: all heat-sealable sterile barrier systems for steam sterilization
• STANDARDS: UNI EN 868-5:2009 DIN 58953-7; Directives 2006/42/EC—2014/30/EU-2014/35/EU
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
SI series
Industrial pneumatic stainless steel sealers
• Bi-active sealing mm 520, mm 720, mm 1020
• Sealing height mm 5, mm 8
• Sealing parameter control
• Special Engineerings
• Numerous versions and accessories
• Applications: food, electronics, chemical industry

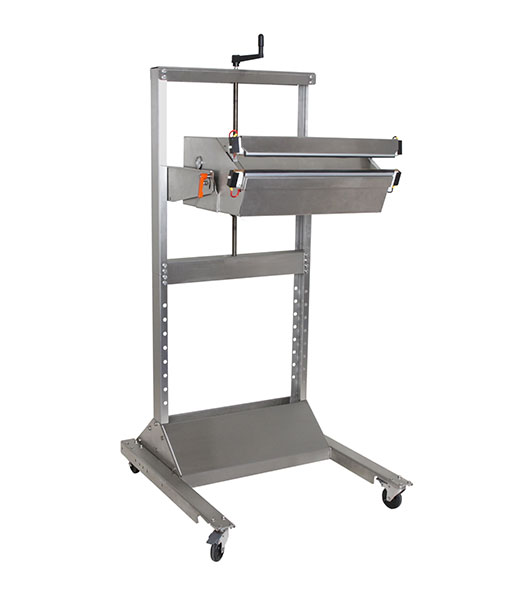

SI VAL series
Industrial pneumatic heat sealers in stainless steel
• Bi-active sealing mm 520, mm 720, mm 1020
• Sealing height mm 5, mm 8
• Vertical / horizontal sealing
• Sealing parameter control
• Numerous versions and accessories
• Applications: food, medical, pharmaceutical, laboratories, chemical industry

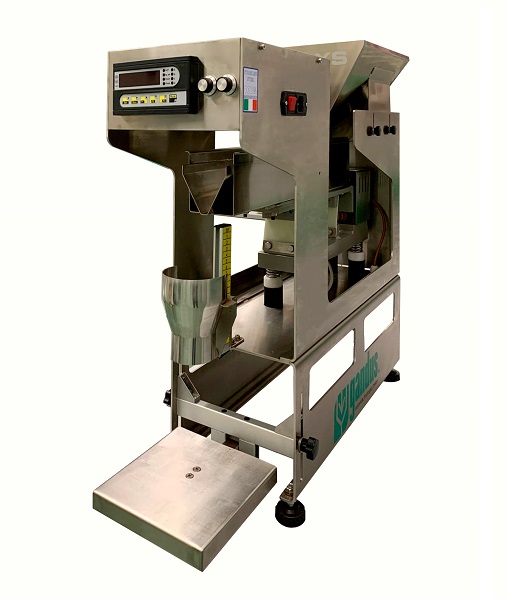

DPCV XS
Semi-automatic electronic doser
• 1 vibrating power supply channel
• Weighing platform with load cell
• Color setting touch screen
• Fine or large volume products
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
VFFS packaging machine Micro
Form-Fill-Seal vertical packaging machines with a compact design to produce pillow or square bottom packs starting from a reel of heat-sealable film
• Minimum dimensions, high performance
• Complete management from PLC
• Specific customizations and numerous accessories
• Applications: coffee, biscuits, sweets, snacks, granular products, baked goods, pasta, rice, chocolate, pastry, technical products, pet food, powders.
• Packaging: pillow, square bottom
• Materials: BOPP, AL/PE, paper/PE, PP COEX, Polyethylene
• Manufactured in a UNI EN ISO 9001:2015 Certified Company

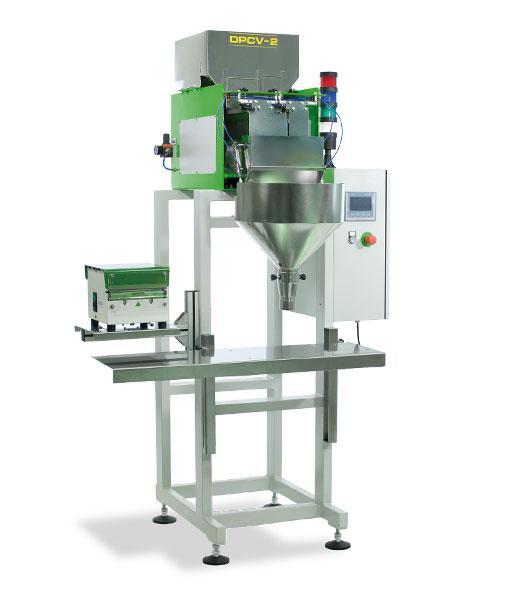

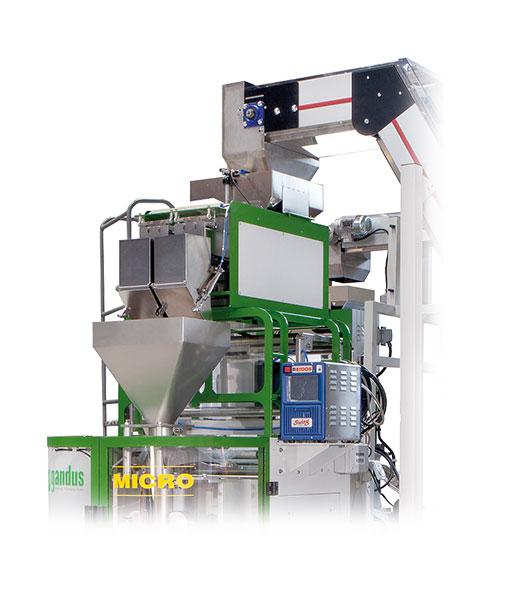

DPCV – DPCVS Series
Semi-automatic and automatic electronic linear dosers
• Power supply for 1, 2, 4 vibrating channels
• Ease of use
• Great connectivity to loading and sealing systems
• Precision and flexibility
• Fine and coarse grain products
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
VFFS packaging machine Micro IC
Inclined Form-Fill-Seal vertical packaging machines, designed for packaging fragile products
• High performance in extremely small spaces
• Complete PLC management
• Speed control from touch screen
• Ease of use and format change
• Specific customizations and numerous accessories
• Programming with recipes
Automatic Packaging Lines
Automatic packaging lines specifically designed for granular and powdered food products and for non-food products such as small plastic and metal parts.
• Certified quality standards
• Quick and easy format change
• High production capacity, minimum space requirements
• Precision, ergonomics, design and maximum flexibility
• Specific customizations and numerous accessories
• Materials: Bopp film reels, Al/Pe, paper/Pe, PP Coex, polyethylene
DPCVT 2T 3T
Semi-automatic and automatic electronic linear dosers
• 2 or 3 weighing heads
• High performances
• Connectivity to loading and sealing systems
• Fine and coarse grain products
• Manufactured in a UNI EN ISO 9001:2015 Certified Company

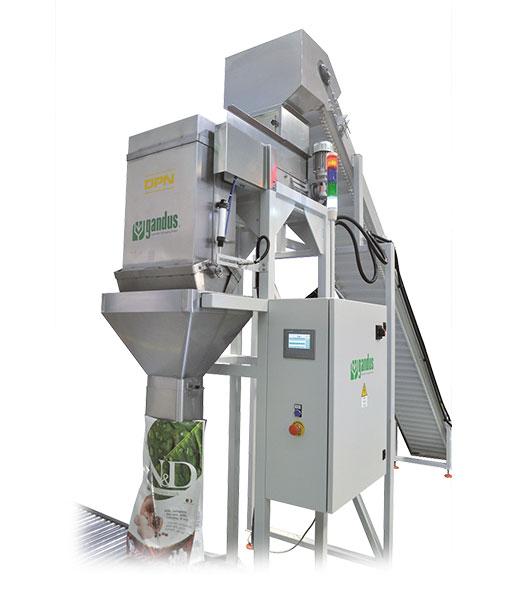

DPS 1N – 2N
Semi-automatic and automatic belt weighers
• Large volumes of product
• Special products
• Ground support
• Applications: granular products and sizes
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
VFFS packaging machine GA 25
Automatic vertical film packaging machine for large bags
• Applications: large volumes of granular products, powders, pasta, technical products, pet food, agricultural products, chemicals, pellets.
• PLC for command and control of the machine and all its functions.
• Interface with automatic feeding and dosing systems.
• Specific customizations and numerous accessories
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
DVCS BR
Electronically operated vertical auger volumetric doser
• High performances
• Digital weight control
• Recipe storage
• Applications: non-flowing powdered and finely ground products
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
Forma VFFS Packaging Machine
Vertical Form Fill Seal packaging machine to produce Stabilo packages, with 4 vertical seals, starting from a reel of heat-sealing film
• Management from PLC
• Touch screen speed control
• Easy and fast format change
• Programming with recipes
• Interface automatic feeding and dosing systems
• Printing System
• Specific customizations and accessories
• Applications: coffee, pasta, rice, powders, flours, baked goods, confectionery products, pet food
• Packaging: Stabilo 4 vertical seals, 3-seal pillow and square bottom packs
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
XS Tube 300
Polyethylene FFS machine from layflat tubing for bags with upward opening. The ideal solution for saving material and working time
• Coil width mm 40–mm 300
• Bag length mm 80–mm 999
• Quick, simple, economical format change
• Quick and easy product insertion
• Stainless steel
• Color touch screen
• Printing system
• Specific customizations and accessories
• Packages: bags with one or two seals, bags with multiple seals, packages with European hole
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
Robotic cell
Robotic cell system project Customer’s need was to completely automate the assembly process of their products, an operation previously performed by hand. The project developed a fully automated system, which uses an anthropomorphic robot for product loading and a rotary table system for assembly.
Pallet Handling System
Pallet Handling System Project Customer’s requirement was to automate the transport of very heavy empty containers to the processing area, where they were filled with products. The developed process automation system allowed operations to be carried out without tiring the operator. This type of customization is suitable for any type of need and dedicated work […]
Marking System
Cold marking system project Customer’s need was to develop an automatic cold marking system for their product, before packaging. Previously this operation was done by hand. The developed project allowed to optimize the operation, speeding it up and making the risk of error almost zero.
Filling System
Filling System Project Customer’s need was to be able to dose the product with an electromagnetic flow meter. After dosing, a weight check is carried out with a belt scale. If the weight is correct, the container is capped and marked.
XS Tube 500
FFS machine from layflat tubing for bags with upward opening. The ideal solution for saving both material and working time
• Coil width mm 60 – mm 500
• Bag length mm 80 – mm 999
• Quick, simple, economical format change
• Quick and easy product insertion
• Even two reels simultaneously
• Stainless steel
• Color touch screen
• Printing system
• Specific customizations and accessories
• Packages: bags with one or two seals, bags with multiple seals, packages with European hole
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
One4All
Complete Pouch Packaging Station, designed to combine in a single element all the devices needed for a perfect sealing process to guarantee simple and efficient storage of both packaging materials and packaged products.
• Design and ergonomics for maximum safety and efficiency
• Ethernet interface to communicate with software dedicated to total traceability
• Maximum operational flexibility
• Small size and large work space
Validation and Calibration Services
Validation, Calibration and Recalibration services dedicated to the ISO 11607.2 Validation process.
• Absolute compliance with current regulations
• Carried out on new Validable sealing machines and on Validable sealing machines already in use
• Calibration Certificate issuance
IQ – OQ Certifications
Gandus Saldatrici, through its highly specialized technicians, offers control services relating to Installation Qualification and Operation Qualification, to certify, as required by current legislation in terms of process validation, that the devices have been supplied, are installed and work in accordance with the requirements of the legislation.
• IQ compliance checks
• OQ compliance checks
• Documentation issuance
Peel Strength Test
Heat-sealed joint leak tests as required by EN 868-5 and Performance Qualification (QP) procedures.
• Calibrated instruments for Peel Strength Test on welding
• EN 868-5 compliant
• Compliance with Performance Qualification (QP) procedures
• Certificate issuance
Routine Tests
New generation indicator tests, for daily control of the integrity of the seals made with sterilization pouch sealers. In accordance with EN ISO 11607.1.2 and ASTM F1929 standards
• Simple, safe and fast use and reading of the result
• Reliability of the results
• Materials: pouches and rolls as per EN ISO 11607.1/ EN 868-5 in paper and film as per EN 868-3, pouches and rolls as per EN ISO 11607.1.2 / EN 868-9 for uncoated polyolefin materials (e.g. Tyvek®)
Seal CheckIT
Test system for daily verification of the locking system and for Operational Qualification (OQ) according to EN ISO 11607.2.
• Simplicity, speed of use
• Reliability of results
• Compliance with EN ISO 11607.2 standards.
Multi-Head Weigher
Multi-head weigher with modular system
• Modular system with independent heads
• Color setting touch screen
• Maximum control and precision of the feeding sequence
• Optional weight load cell in each weighing head
• Numerous versions and customized options
SI VACUUM series
Pneumatic vacuum heat sealers
• Venturi pump suction system
• Sealing length mm 520, mm 720, mm 1020
• Sealing height mm 5, mm 8
• Vertical or horizontal sealing
• Special Engineering
• Numerous versions and accessories
• Applications: electronic, food, pharmaceutical, medical, chemical, cosmetics, small parts, automotive
SI motor
Motorized impulse heat sealer.
• Designed for intensive use
• Sealing bars length 420 mm, 620 mm, 1020 mm
• Sealing height 5 mm
• Stainless steel
• Materials: Polyethylene, Polypropylene, laminates
tb-3 lab
Benchtop impulse heat sealer for closing and coding PE, PP, PVC tubes
• Stainless steel
• Sealing height mm 4
• Great production flexibility
• Small productions, maximum performances
• Punch coding system
• Applications: cosmetics, confectionery, chemicals
• Materials: PE, PP, PVC tubes
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
tb-3
Benchtop impulse heat sealer for closing and coding PE, PP, PVC tubes
• Stainless steel
• Sealing height mm 4
• Great production flexibility
• Small productions, maximum performances
• Punch coding system
• Applications: cosmetics, confectionery, chemicals
• Materials: PE, PP, PVC tubes
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
NICO DR 580
Hevy duty semi-automatic continuous heat sealer for industrial bags
• Sealing width mm 30
• Medium and large sized bags
• Applications: food products, cosmetics, chemical products
• Materials: coupled polypropylene material, paper or aluminium.
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
RO 3003
Heavy duty rotary heat sealer for industrial bags in any heat-sealable material
• Max. sealing height mm 30
• Maximum speed up to 20 m/min.
• Applications: food, chemical, pharmaceutical, components
• Materials: bags in any heat-sealable material
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
RO 3001
Heavy duty high speed rotary heat sealer designed to work with high performance even in extreme working situations
• Stainless steel construction
• Sealing speed up to 12 m/min
• Mechanical or motorized support
• Bags counter
• Applications: food, chemical, pharma, parts
• Materials: any flexible heat sealable material
• Manufactured in a UNI EN ISO 9001:2015 Certified Company
